$19.31

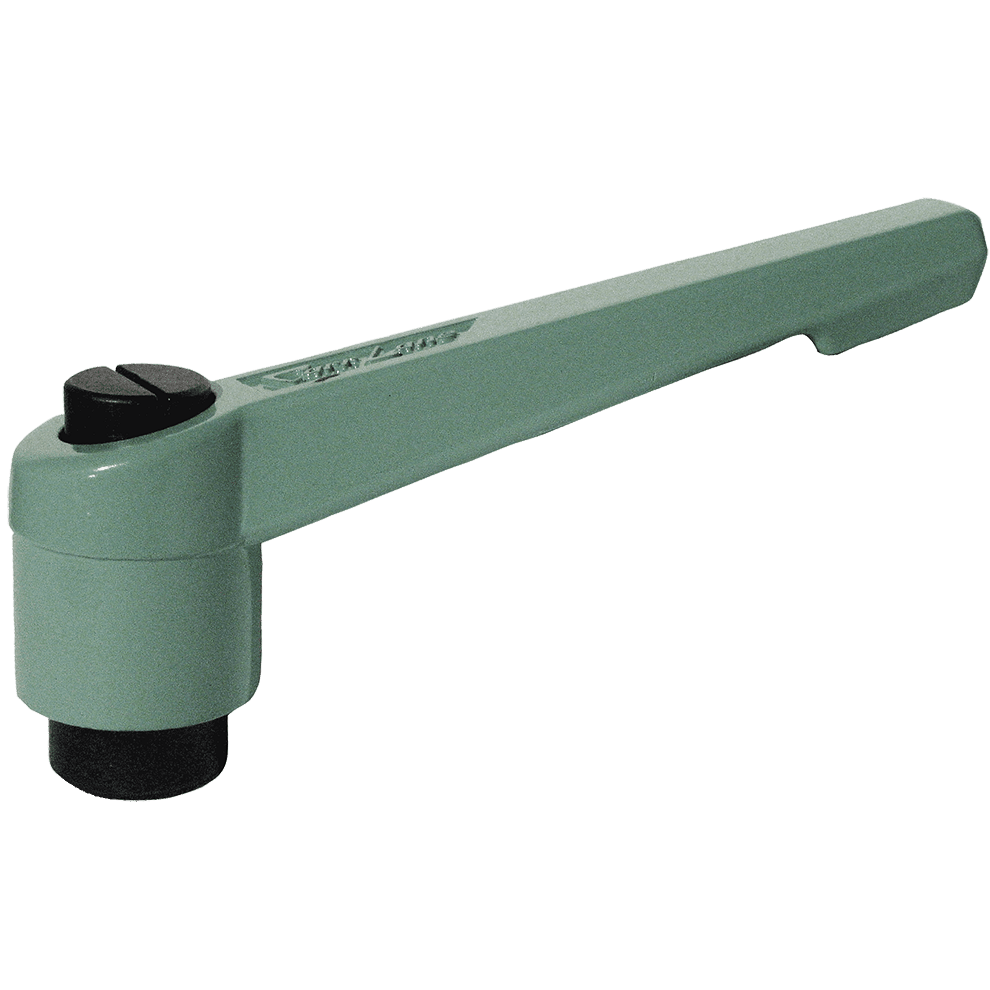

Adjustable Handle
Adjustable clamping handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism. Adjustable Handles are available in a total of six sizes. This version, with a steel body and zinc die-cast handle, is available in the following four of the six sizes, with stud sizes from 5/16-18 to 5/8-11, each in a choice of several lengths: Size 2 Size 3 Size 4 Size 5
| Product Type | Adjustable Handle |
|---|---|
| Size | Size 3 |
| Thread Size (E) | 3/8 in – 16 |
| Material | Zinc Die Casting (Handle);Mild Steel (Body) |
| Finish | Enamel Paint (Handle);Black Oxide (Body) |
| Mounting Type | Stud Type |
| Handle Length (A) | 3-1/8 in |
| Head Diameter (B) | 7/8 in |
| Handle Width (C) | 7/16 in |
| Head Width (D) | 1-1/2 in |
| Hub Diameter (G) | 5/8 in |
| Hub Length (H) | 13/32 in |
| Color | Black (Body) |
| Minimum Clamping Height (L) | 2-3/16 in |
| Maximum Clamping Height (M) | 2-5/16 in |
| Standards Met | DFARS;RoHS Compliant |
| Dimension (F) | 1-1/2 in |
| Dimension (K) | 15/16 in |
