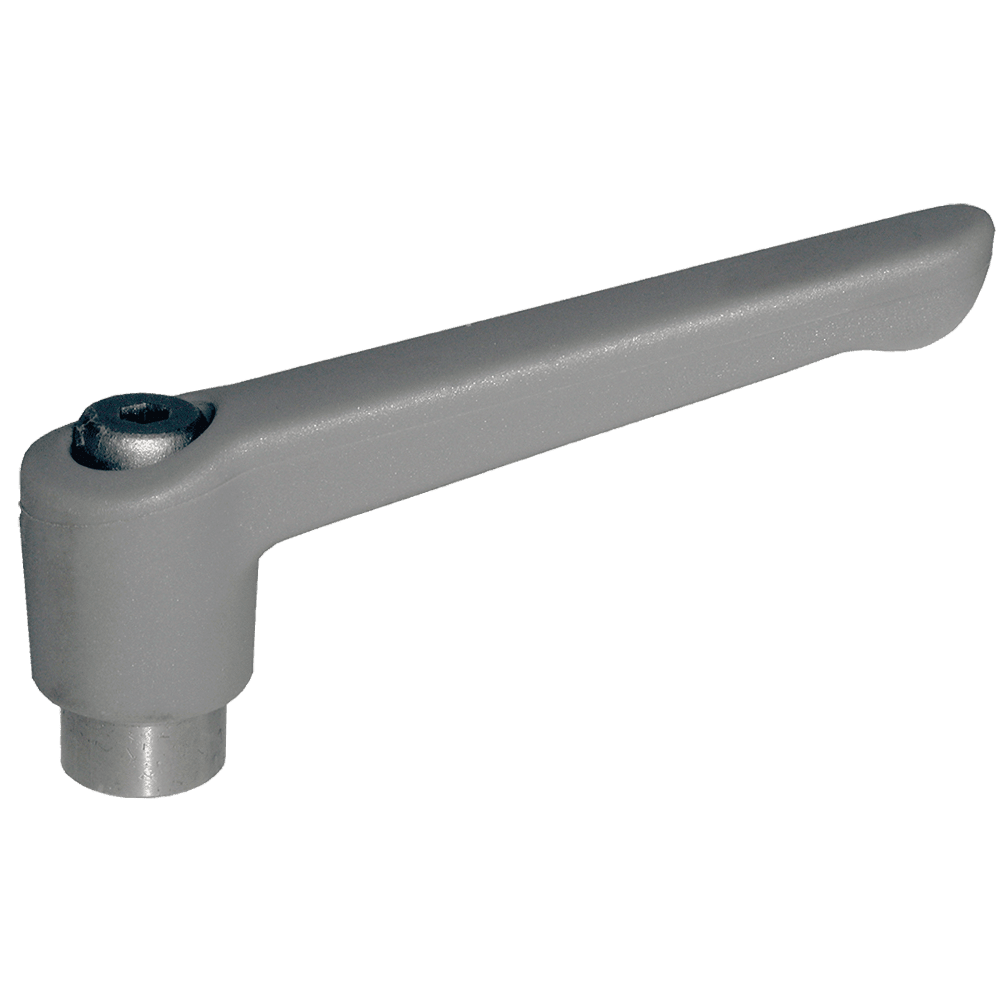

Adjustable Handle – Tapped (Stainless Steel Body, Thermoplastic Handle)

Adjustable Handle – Tapped (Stainless Steel Body, Thermoplastic Handle)

$27.03


Brand: Carr Lane

Adjustable Handle – Tapped (Stainless Steel Body, Thermoplastic Handle)

SKU: CL-6-AHP-3-S Category:

Description

Stainless steel adjustable clamping handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism. These handles are incredibly strong, featuring a unique stainless steel spline inlay molded into the plastic handle. This provides positive metal-to-metal mating with the serrated body, for high clamping torque. Adjustable Handles are available in a total of six sizes. This version, with a stainless steel body and thermoplastic handle, is available in the smallest four of the six sizes, with tapped holes from #10-32 to 1/2-13 (M6 to M12 in metric): Size 1 Size 2 Size 3 Size 4

Additional information

Product Type

Adjustable Handle

Size

Size 3

Thread Size

3/8 in – 16

Material

Fiber-Reinforced Thermoplastic (Handle);300 Stainless Steel (Body)

Finish

300-Series Stainless Insert (Handle)

Mounting Type

Tapped

Handle Length (A)

3-1/16 in

Head Diameter (B)

7/8 in

Handle Width (C)

17/32 in

Head Width (D)

1-7/16 in

Hub Diameter (G)

5/8 in

Hub Length (H)

5/16 in

Color

Metallic Gray

Minimum Clamping Height (L)

2-5/32 in

Maximum Clamping Height (M)

2-5/16 in

Standards Met

DFARS;RoHS Compliant

Dimension (K)

7/8 in
