$81.77

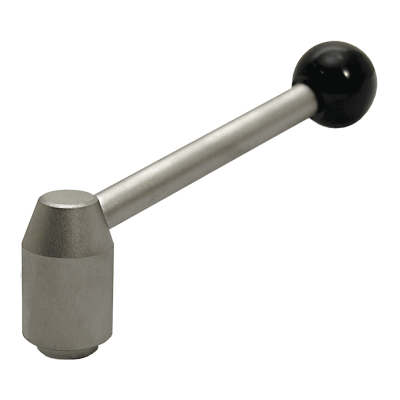

Adjustable Lever Handle – Tapped (Stainless Steel)
Heavy-duty stainless steel adjustable handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism. Adjustable handles are available in a total of six sizes. This version, with all-stainless construction, is available in two of the six sizes, with tapped holes from 3/8-16 to 1/2-13 (M10 to M12 in metric): Size 3 Size 4
| Product Type | Adjustable Lever Handle |
|---|---|
| Size | Size 3 |
| Thread Size | 3/8 in – 16 |
| Material | Stainless Steel (Level Arm, Hub and Insert);Spring Steel (Spring);Phenolic Plastic (Ball Knob) |
| Finish | Sandblasted Satin (Level Arm, Hub and Insert);Black Oxide (Ball Knob) |
| Mounting Type | Tapped |
| Handle Length (A) | 3.94 in |
| Head Diameter (B) | 0.94 in |
| Handle Width (C) | 0.39 in |
| Head Width (D) | 1.57 in |
| Hub Diameter (G) | 0.63 in |
| Hub Length (H) | 0.1 in |
| Color | Black (Ball Knob) |
| Minimum Clamping Height (L) | 2.95 in |
| Standards Met | DFARS;RoHS Compliant |
| Dimension (J) | 0.55 in |
| Knob Diameter (N) | 0.98 in |
| Travel (P) | 0.18 in |
