Angle Bracket with Locating Holes

Angle Bracket with Locating Holes

$86.27


Brand: Carr Lane

Angle Bracket with Locating Holes

SKU: CL-15310-ABK Category:

Description

Extremely Accurate Angle Brackets With Precision Locating Holes. These Angles Are Ideal For Bolting Together Like An Erector Set To Create Large-Scale Tooling. Ideal For Assembly And Welding Fixtures.The 90° Angle And Eight Locating Holes Are Held To Close Tolerances To Maintain Good Accuracy In Built Up Tooling. Available In A Wide Range Of Section Sizes, Most In A Choice Of Lengths, From A Tiny 2″ X 2″ X 2″ Long Angle To A Massive 6″ X 6″ X 6″ Long Angle. Made In Usa.

Additional information

Product Type

Angle Bracket

Angle

90°

Number of Holes

4

Material

ASTM A36 Steel (Angle Brackets);Steel (Locating Bolts)

Finish

Black Oxide

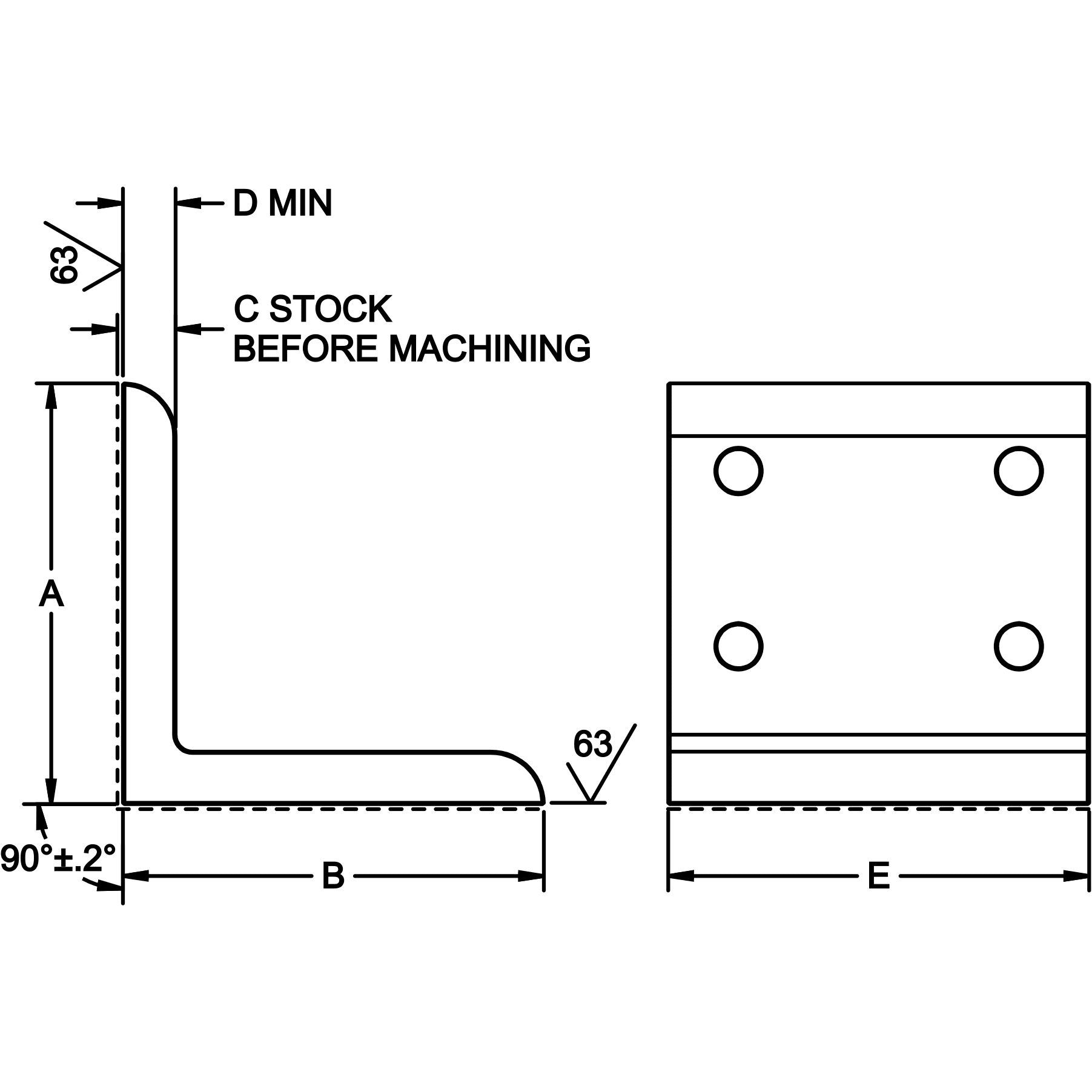

Length (A)

4 in

Width (B)

4 in

Standards Met

DFARS;RoHS Compliant

Dimension (C)

1/2 in

Dimension (E)

4 in
