Ball Lock Pin (L Handle)

Ball Lock Pin (L Handle)

$39.09


Brand: Carr Lane

Ball Lock Pin (L Handle)

SKU: CLM-6-BLPL-50-S Category:

Description

Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank. These standard single-acting Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the locking balls to retract. The L-handle version shown here is one of four available handle styles. Made in USA. Available in pin diameters from 3/16 to 1″ (5 to 20mm in metric), in alloy steel or stainless steel. Standard grip lengths for each diameter and material are listed in the tables below, most in stock for same-day shipment. Ball Lock Pins with special grip lengths up to 12° (300mm) and other special features can be quickly made to order. The Part Configurator link at the top of this page can be used for any BLP Ball Lock Pin, either standard or special.

Additional information

Product Type

L-Handle Ball Lock Pin

Nominal Pin Diameter

6 mm

Maximum Pin Diameter

7.06 mm

Grip Length

50 mm

Spring and Ring Material

17-7PH/302 Stainless Steel

Handle Material

Aluminum Alloy

Ball Material

440C Stainless Steel

Pin Material

17-4PH Stainless Steel

Finish

Passivated (Shank, Spindle, Collar);Black (Handle);Anodized (Button)

Lock Type

Ball

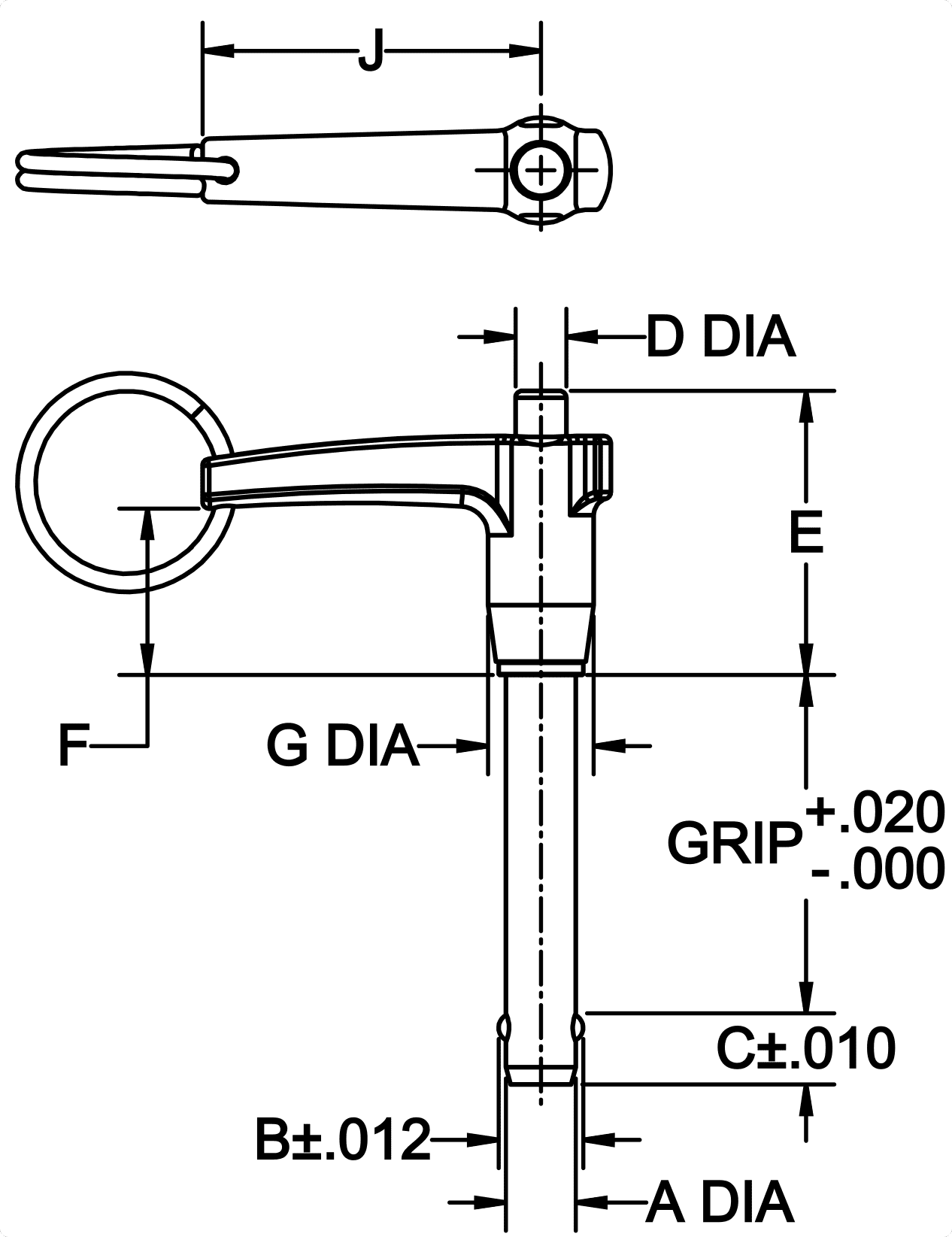

Tip to Ball Length (C)

6.99 mm

Push Button Diameter (D)

5.5 mm

Neck to Head Length (E)

32 mm

Neck to Shoulder Length (F)

20 mm

Neck Diameter (G)

12 mm

Standards Met

DFARS;RoHS Compliant

Dimension (J)

38 mm

Actual Diameter (A)

5.96/5.92 mm
