$6.07
Bullet-Nose Dowel
Precision locating pin often used with a mating bushing to align two pieces of a fixture. The pin’s head and shank diameters are concentric to within .0005″ TIR. Available in pin diameters 1/4, 5/16, 3/8, and 1/2″ (6, 8, 10, and 12mm in metric). Made in USA.
| Product Type | Bullet-Nose Dowel |
|---|---|
| Head Diameter | 1/4 in |
| Shank Diameter | 1/4 in |
| Material | 1144 Steel |
| Finish | Black Oxide |
| Hardness | Heat Treated Rc 50-55 |
| Tip Shape | Round |

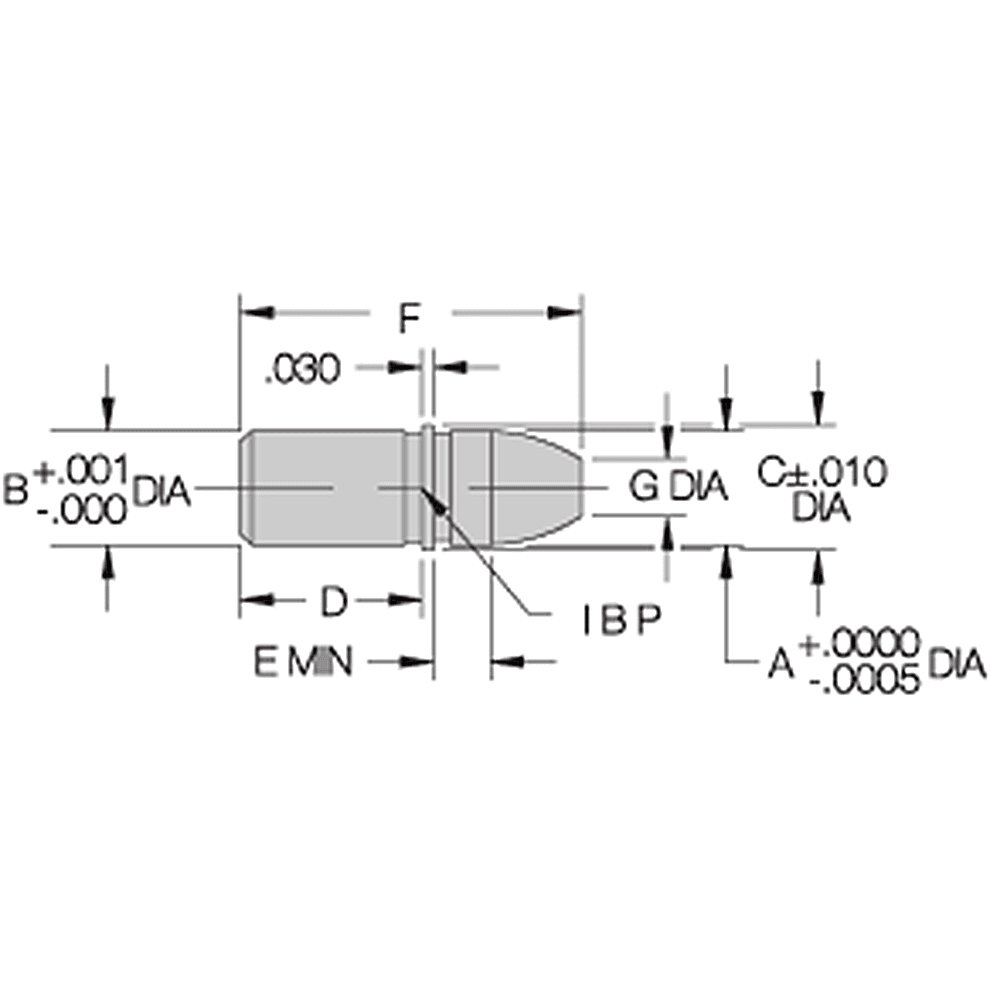

| Machine Hole Diameter (A) | 1/4 in |
| Height (F) | 0.9 in |
| Standards Met | DFARS;RoHS Compliant |
| Dimension (E) | 0.12 in |
| Tip Diameter (G) | 1/8 in |
| Shank Length (D) | 1/2 in |
