Description

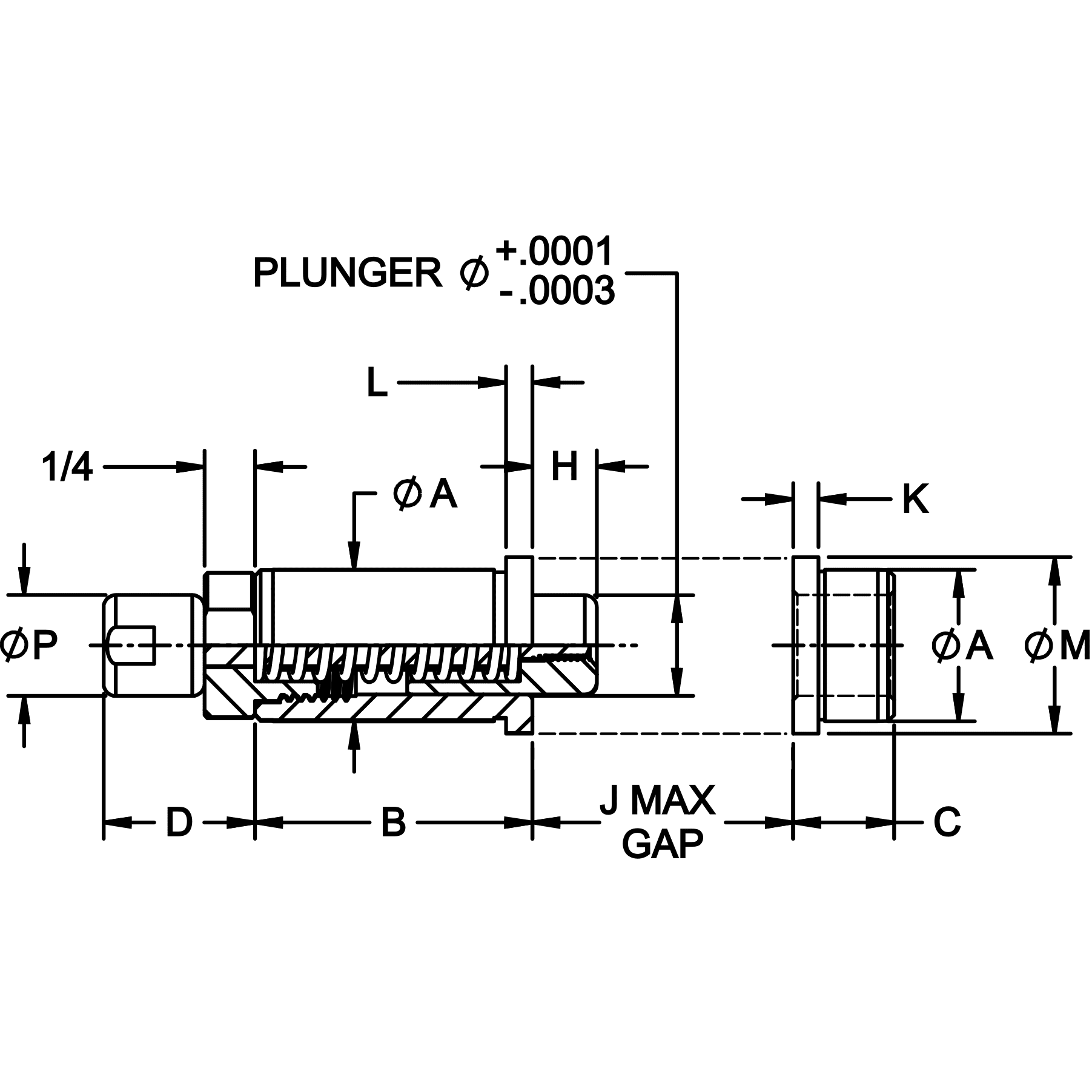

Index plungers are precision, heavy-duty assemblies with a retractable spring-loaded plunger and a matching locating bushing (order separately). Straight Index Plungers have an entirely cylindrical plunger with a slight radius at the tip, used together with a straight bushing. A straight plunger provides slightly greater positional accuracy (also available with a tapered plunger, for easier alignment). Made in USA. The configuration shown here has a blank machinable end for easy adaptation to various actuating devices, including automated setups, and is available in three plunger diameters: 1/2″ 3/4″ 1″ Index Plungers and their matching bushings feature a precision-ground body diameter, but are also available with a slightly oversize unground OD to allow custom grinding to size.
