$7.17
Cable Tab (Rectangular)
Cable Tabs Can Be Attached To The Looped End Of Our Nylon-Coated Cable To Allow Fastening That Cable End With A Screw. These Tabs Can Be Used With Cable Sizes #1, #2, And #3. Choice Of Two Shapes, Rectangular (shown Here) And Teardrop. Available In Aluminum And Stainless Steel.

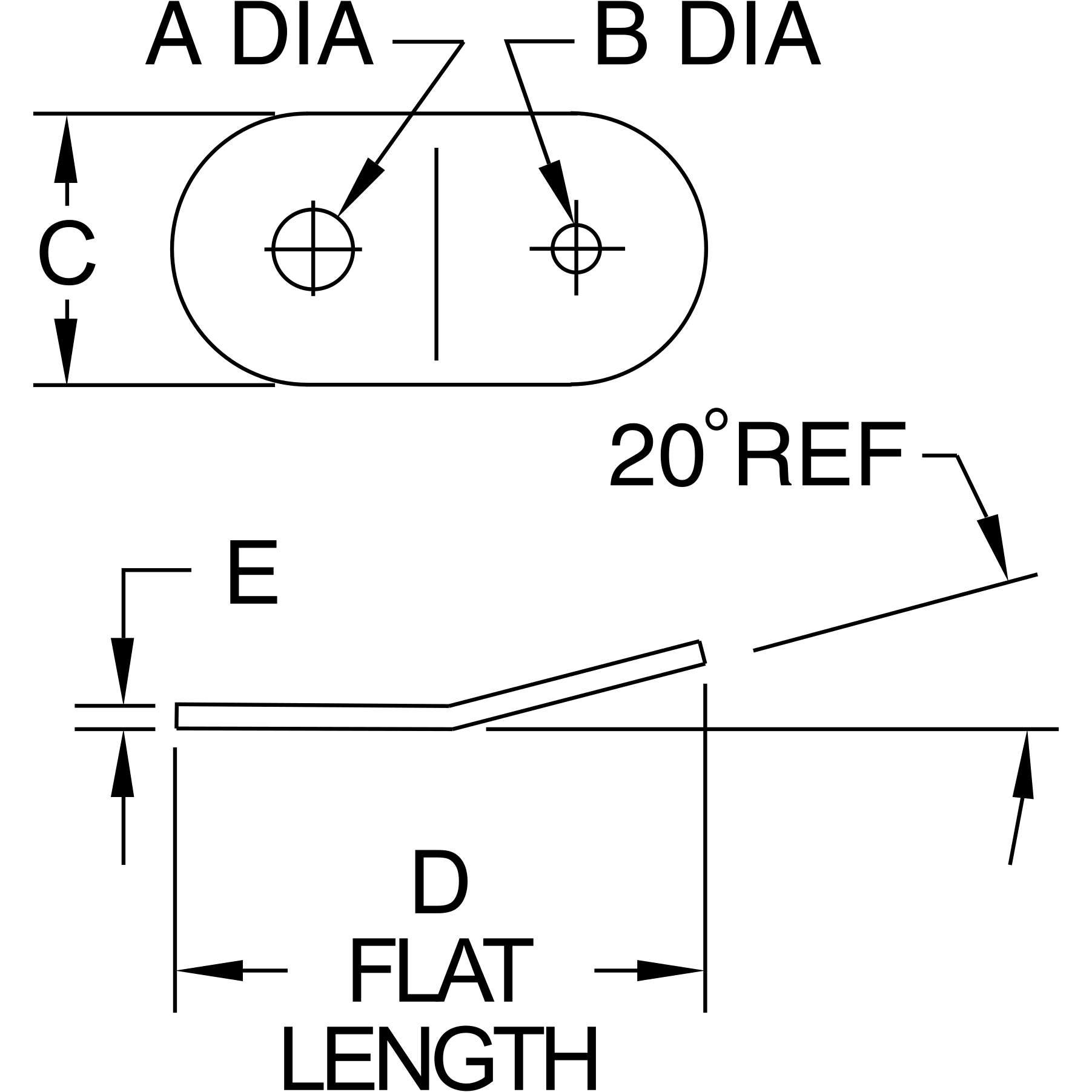

| Product Type | Cable Tab |
|---|---|
| Fits Cable | Sizes 1 to 3 |
| Mounting Hole Diameter (A) | 0.2 in |
| Screw Size | #10;M4 |
| Mounting Hole Diameter (B) | 0.19 in |
| Material | Aluminum |
| Finish | Clear Anodized |
| Flat Length (D) | 1.14 in |
| Width (C) | 1/2 in |
| Standards Met | DFARS;RoHS Compliant |
| Thickness (E) | 0.06 in |
