Cam Edge Clamp (Standard)

Cam Edge Clamp (Standard)

$214.41


Brand: Carr Lane

Cam Edge Clamp (Standard)

SKU: CL-MF40-5611 Category:

Description

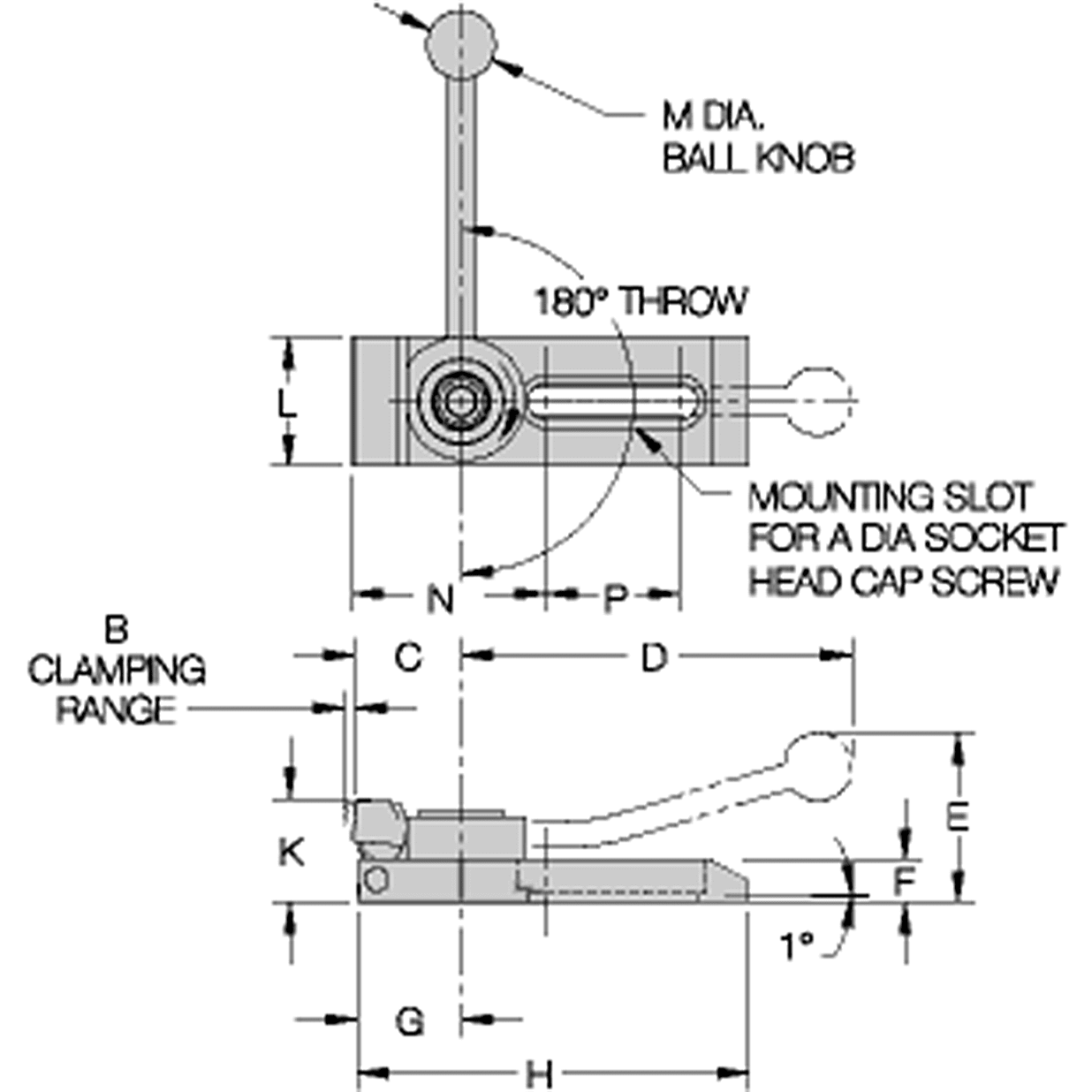

Pivoting-nose edge clamp actuated by a cam handle for fast action. The serrated nose pivots to exert clamping force forward and downward at the same time. Smooth spiral cam locks positively anywhere within its 180° throw. The slotted base provides adjustable clamp location, ideal for mounting on modular tooling plates. Choice of clockwise or counterclockwise handle movement to clamp.The Cam Edge Clamps shown here are for Standard System MF40 (slot for 1/2-13 mounting screw). For our complete selection of Cam Edge Clamps, see Related Products below.

Additional information

Product Type

Cam Edge Clamp
Clamping Range

7/32 in
Ball Knob Diameter

1 in
Mounting Slot Diameter

2 in
Handle Length (D)

5-3/4 in
Maximum Clamping Clearance (E)

2-1/2 in
Mounting Screw Size

1/2 in – 13
Clamping Direction

Clockwise
Maximum Horizontal Clamping Force

1500 lb
Maximum Vertical Clamping Force

100 lb
Material

Steel (Body);Black Phenolic Plastic (Ball Knob)
Finish

Black Oxide
Overall Length (H)

6 in
Overall Width (L)

1-7/8 in
Standards Met

DFARS;RoHS Compliant
Dimension (C)

1-9/16 in
Dimension (G)

1-1/2 in
Dimension (N)

2-15/16 in
Dimension (F)

5/8 in
Dimension (Min K)

1-5/16 in
Dimension (Max K)

1-1/2 in
