$54.50
Cam Handle

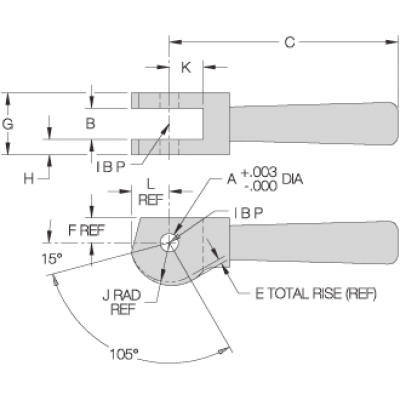

Straddle-type cam handle that can be used with an Eye Bolt or a custom-made drawbar. Continuous-rise spiral cam locks securely in any position. Available to fit Eye Bolt sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Order matching clevis pin separately below.
| Product Type | Cam Handle |
|---|---|
| Thread Size | 1/2 in – 13 |
| Nominal Diameter | 3/8 in |
| Material | Mild Steel |
| Finish | Black Oxide |
| Color | Black |
| For Use With | Eye Bolt or Custom-Made Drawbar |
| Overall Length (C) | 4-5/8 in |
| Standards Met | DFARS;RoHS Compliant |
| Dimension (E) | 0.094 in |
| Nominal Dimension (B) | 1/2 in |
| Dimension (F) | 1/2 in |
| Dimension (G) | 1-1/8 in |
| Dimension (H) | 5/16 in |
| Dimension (J) | 0.79 in |
| Dimension (K) | 0.69 in |
| Dimension (L) | 0.76 in |
