$15.82
Clamping Pin
These Threaded Alignment Pins Can Be Used For Locating And Clamping, Or Clamping Only, Depending On Extended Screw Length. The Clamping Bushing Is Furnished Separate From The Pin, And Must Be Welded In Place At The Proper Length To Suit The Application. Available In Thread Sizes From #10-32 To 1/2-13 (M6 To M12 In Metric). Made In Usa.

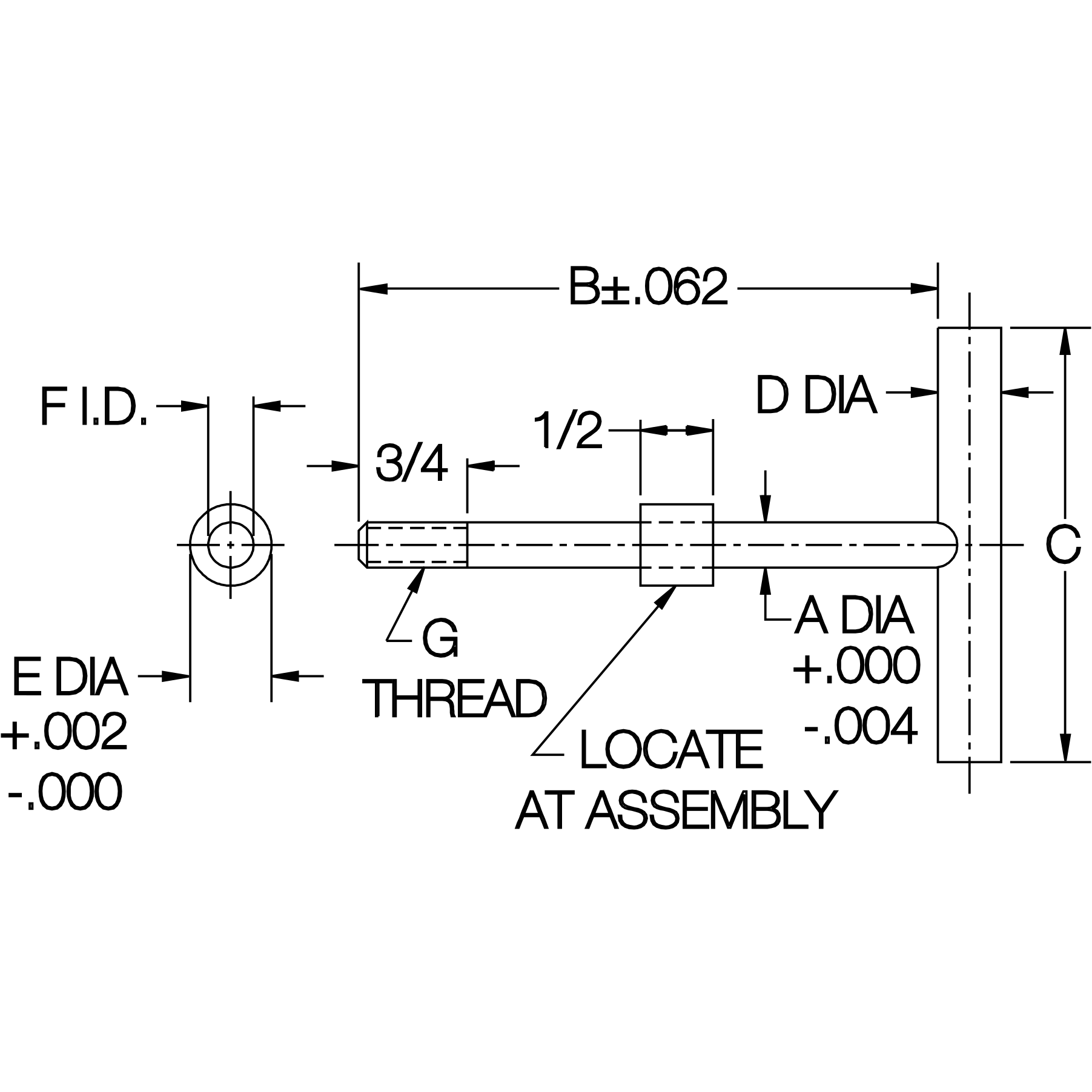

| Product Type | Clamping Pin |
|---|---|
| Thread Size | 5/16 in – 18 |
| Shank Diameter | 5/16 in |
| Bottom Pin Diameter | 0.312 in |
| Pin Length (B) | 4 in |
| Handle Length (C) | 3 in |
| Handle Diameter (D) | 7/16 in |
| Outside Diameter (E) | 9/16 in |
| Inside Diameter (F) | 0.315 in |
| Material | 1215 Steel (Pin);1215 Steel (Handle and Weld-On Bushing) |
| Finish | Black Oxide |
