Eccentric Liner

Eccentric Liner


Brand: Carr Lane

Eccentric Liner

SKU: CL-7-SLPE Category:

Description

Eccentric Liners can be used with Spring Locating Pins to provide additional adjustment for workpieces with looser tolerances. Use with any of the three types. Available to fit all five sizes of Spring Locating Pins from 1/4″ to 5/8″ body diameter.

Additional information

Product Type

Eccentric Liner

Head Diameter

7/16 in

Shank Diameter

11/16 in

Material

Steel

Standards Met

DFARS;RoHS Compliant

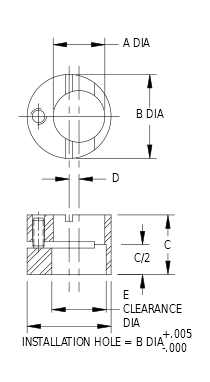

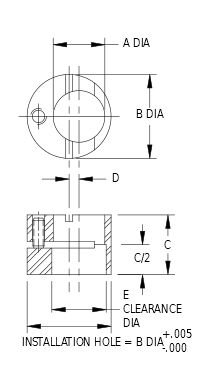

Dimension (Actual Dia A)

0.4375/0.4386 in

Dimension (Actual Dia B)

0.6875/0.6858 in
