Eye Bolt

Eye Bolt

$57.38


Brand: Carr Lane

Eye Bolt

SKU: CLM-76A-EB Category:

Description

High-strength Eye Bolt with a reamed bearing hole. Fully machined from solid barstock. Available in high-carbon steel with thread sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric), and in stainless steel with thread sizes from 1/4-20 to 5/8-11 (M6 to M16 in metric), most in a choice of lengths. Made in USA.

Additional information

Product Type

Eye Bolt

Thread Size

M20

Thread Length

65 mm

Material

Stainless Steel

Finish

Black Oxide

Thread Pitch

2.5 mm

Standards Met

DFARS;RoHS Compliant

Actual Diameter

20 mm

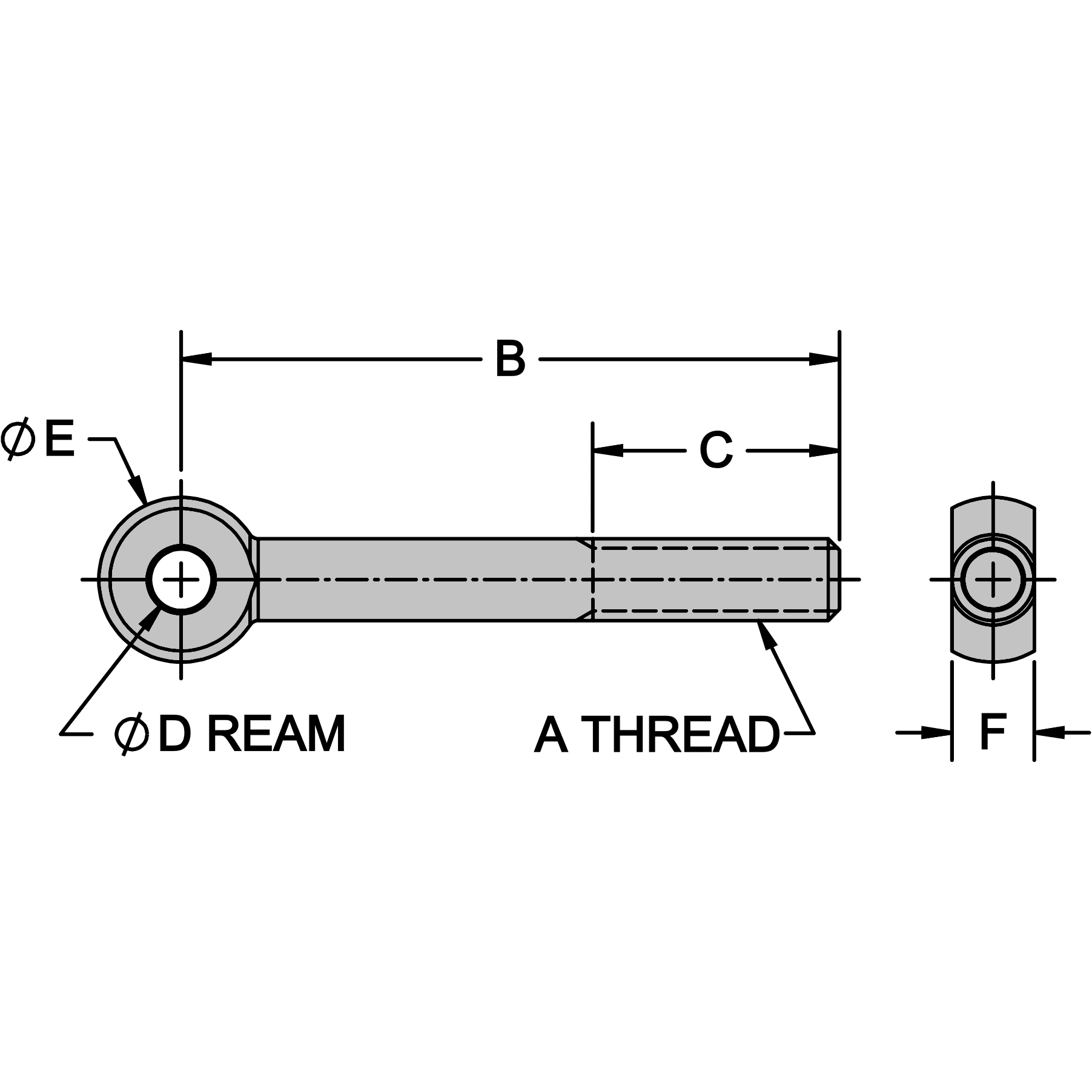

Dimension (B)

150 mm

Outside Eye Diameter (E)

40 mm

Dimension (F)

20 mm
