Forged Adjustable Clamp (Assembly with Flange Nut)

Forged Adjustable Clamp (Assembly with Flange Nut)

$127.84


Brand: Carr Lane

Forged Adjustable Clamp (Assembly with Flange Nut)

SKU: CL-12-FACA-FN Category:

Description

Heavy-duty steel version of our Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Available to fit stud sizes 1/4-20 to 3/4-10 (M6 to M20 in metric), each in a choice of strap lengths. Made in USA. This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are: -1 Assembly with Spherical Nut & Washer -2 Assembly with Flange Nut-4 Assembly with Hand Knob & Spherical Washer -5 Assembly with Acorn Nut & Spherical Washer -6 Assembly with Bar Knob & Spherical Washer

Additional information

Product Type

Forged Adjustable Clamp
Stud Size

3/4 in – 10
Material

Forged 1045 Steel
Finish

Black Oxide
Head Length

2 in

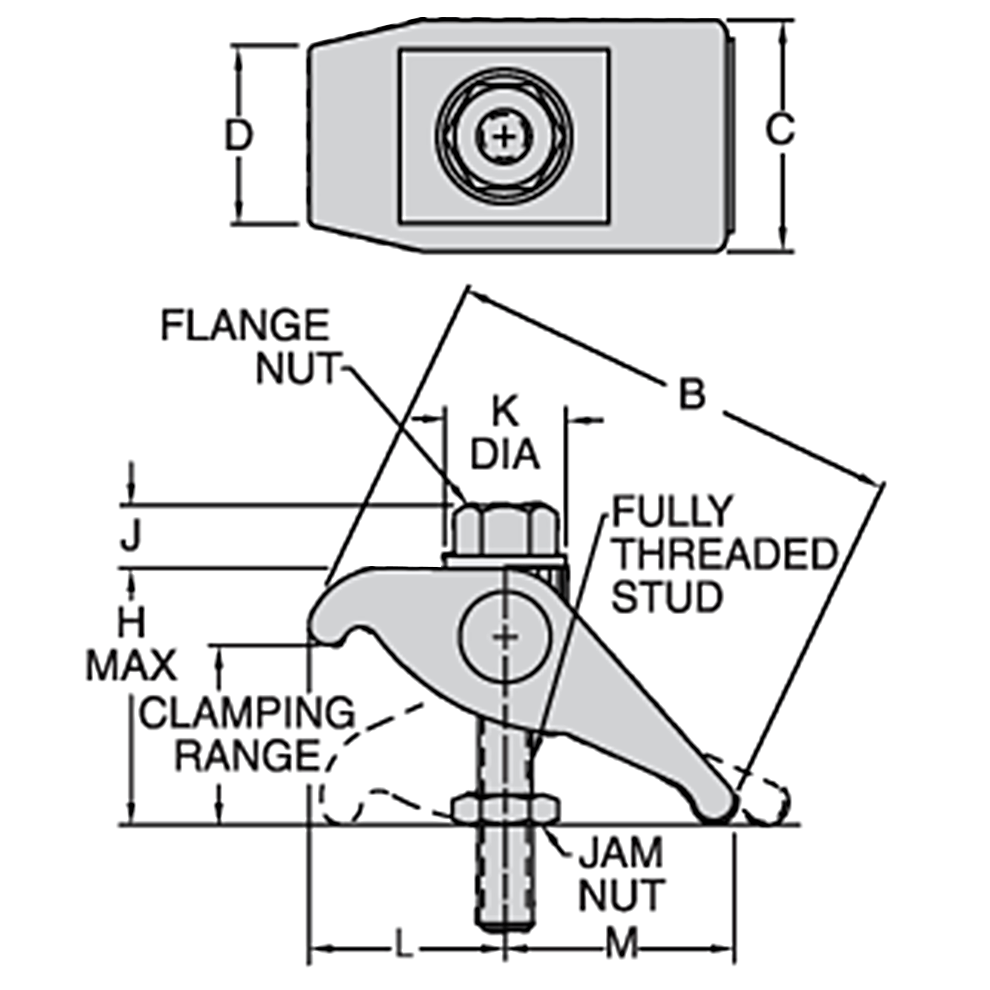

Head Width (C)

2-5/8 in
Head Height (B)

6-1/4 in
Slot Length (J)

1 in
Includes

Forged Adjustable Clamp;Fully Threaded Stud;Flange Nut;Jam Nut
Standards Met

DFARS;RoHS Compliant
Thread Size

3/4 in – 10
Thread Pitch

10
Clamp Pivot Material

Mild Steel
Removable Heel Pad Material

Brass
Dimension (H)

5-3/8 in
Dimension (K)

1-5/8 in
Dimension (Min L)

2-1/8 in
Dimension (Max L)

2-7/16 in
Dimension (Min M)

3-5/16 in
Dimension (Max M)

3-13/16 in
