$54.48

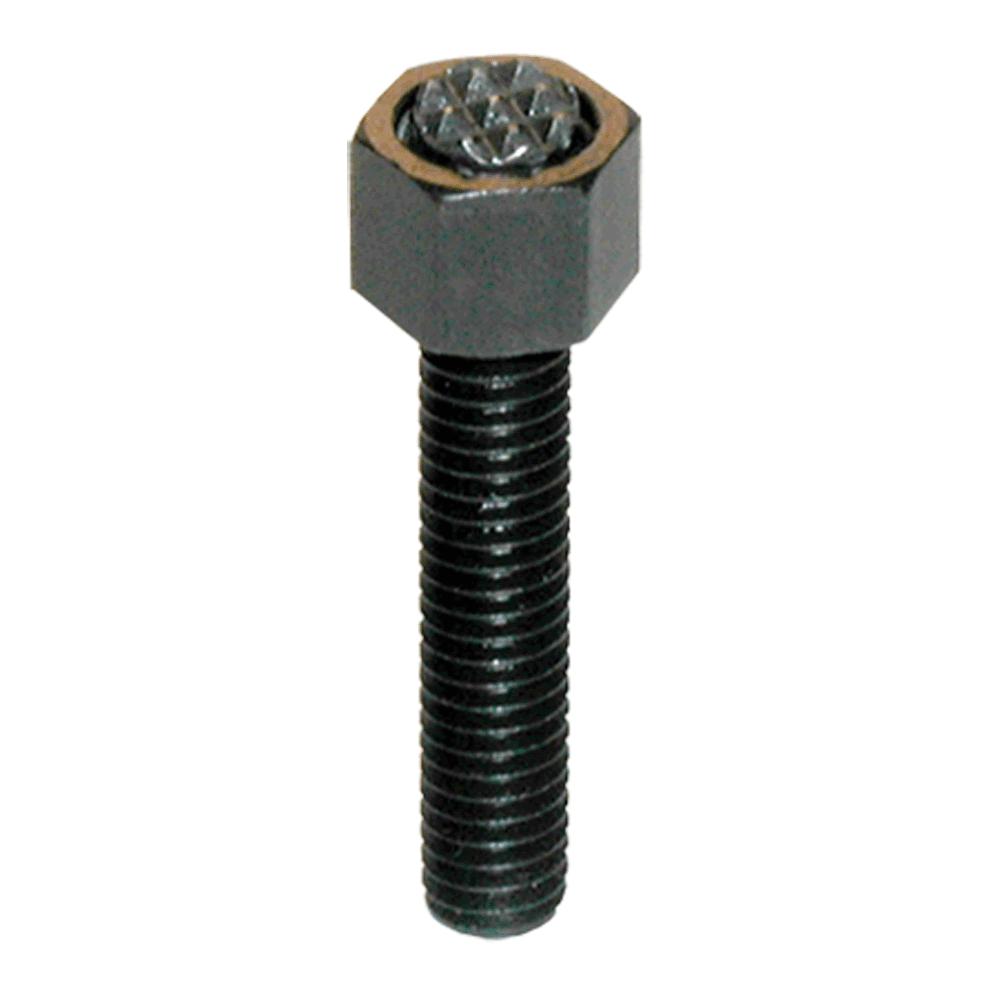

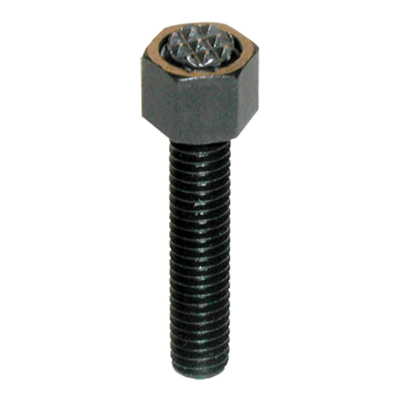

Gripper Swivel Contact Bolt – Mini (Hardened Tool Steel, Serrated)
Mini-size threaded contact bolt with a built-in swivel ball held by a retaining ring. The serrated gripper face is machined directly on the swivel ball. A positive stop prevents the ball from swiveling too far. Can be used as a contact bolt, or as a support. Available in thread sizes from #10-32 to 5/16-18 (M6 to M8 in metric), most in a choice of several lengths. For larger sizes, see Gripper Swivel Contact Bolts. Made in USA.
| Product Type | Gripper Swivel Contact Bolt |
|---|---|
| Thread Size | 1/4 in – 20 |
| Material | Steel |
| Swivel Ball Material | High-Speed Tool Steel |
| O-Ring Material | Rubber |
| Finish | Black Oxide |
| Swivel Angle (G) | 14° |
| Thread Depth (B) | 1-1/2 in |
| Tip Diameter | 1/4 in |
| Head Length (D) | 3/8 in |
| Head Width | 7/16 in |
| Serration Type | Super Fine |
| Serrated Face Diameter (F) | 9/32 in |
| Serration Dimensions | 0.062 in x 90° |
| Standards Met | DFARS;RoHS Compliant |
