Description
Rear-support sliding block for Tapped-Heel Clamp Straps. Guides clamp strap straight back for part loading. Available to fit clamp straps with stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Made in USA.
Rear-support sliding block for Tapped-Heel Clamp Straps. Guides clamp strap straight back for part loading. Available to fit clamp straps with stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Made in USA.

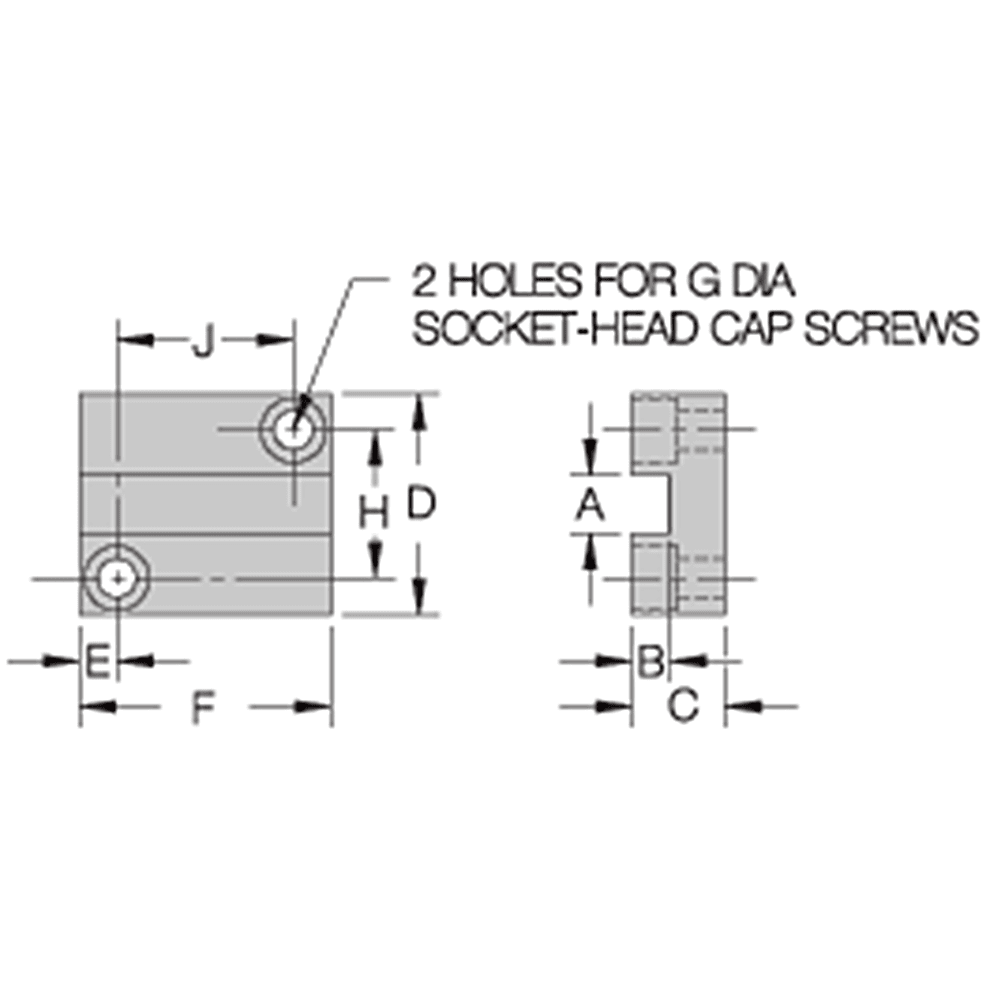

Product Type | Guide Block |
---|---|
Stud Size | 3/4 in – 10 |
Mounting Screw (G) | 1/4 in – 20 |
Material | 1018 Steel |
Finish | Black Oxide |
Overall Length (F) | 2-13/32 in |
Overall Width (D) | 1-3/4 in |
Overall Height (C) | 3/4 in |
Standards Met | DFARS;RoHS Compliant |
Dimension (A) | 0.64 in |
Dimension (B) | 0.39 in |
Dimension (E) | 1/4 in |
Dimension (H) | 1-1/4 in |
Dimension (J) | 1-29/32 in |
