Rear-support sliding block for Tapped-Heel Clamp Straps. Guides clamp strap straight back for part loading. Available to fit clamp straps with stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Made in USA.
Rear-support sliding block for Tapped-Heel Clamp Straps. Guides clamp strap straight back for part loading. Available to fit clamp straps with stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Made in USA.
Product Type | Guide Block |
---|---|
Stud Size | 1/4 in – 20 |
Mounting Screw (G) | #6-32 |
Material | 1018 Steel |
Finish | Black Oxide |
Overall Length (F) | 1-3/16 in |
Overall Width (D) | 3/4 in |
Overall Height (C) | 1/4 in |
Standards Met | DFARS;RoHS Compliant |

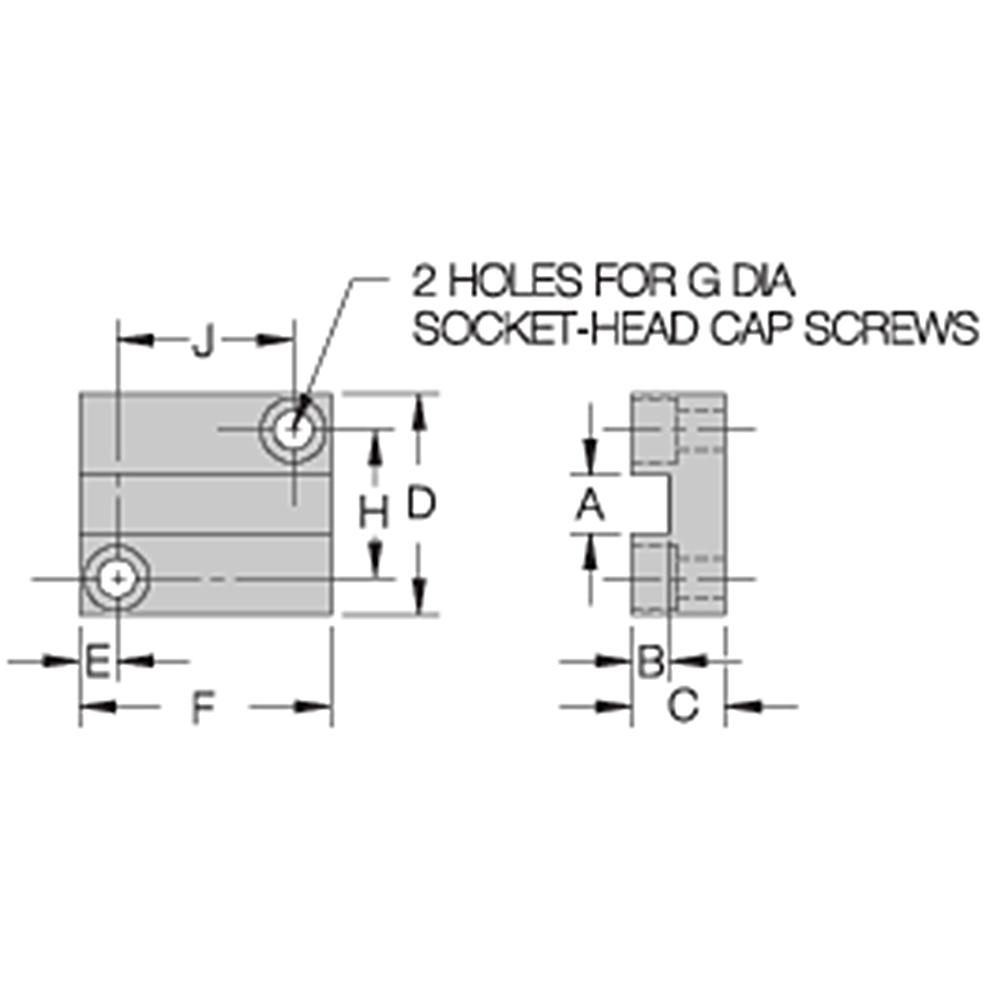

Dimension (A) | 0.198 in |
Dimension (B) | 0.1 in |
Dimension (E) | 13/64 in |
Dimension (H) | 15/32 in |
Dimension (J) | 25/32 in |
