Guide Block

Guide Block

$18.00


Brand: Carr Lane

Guide Block

SKU: CL-6-GB Category:

Description

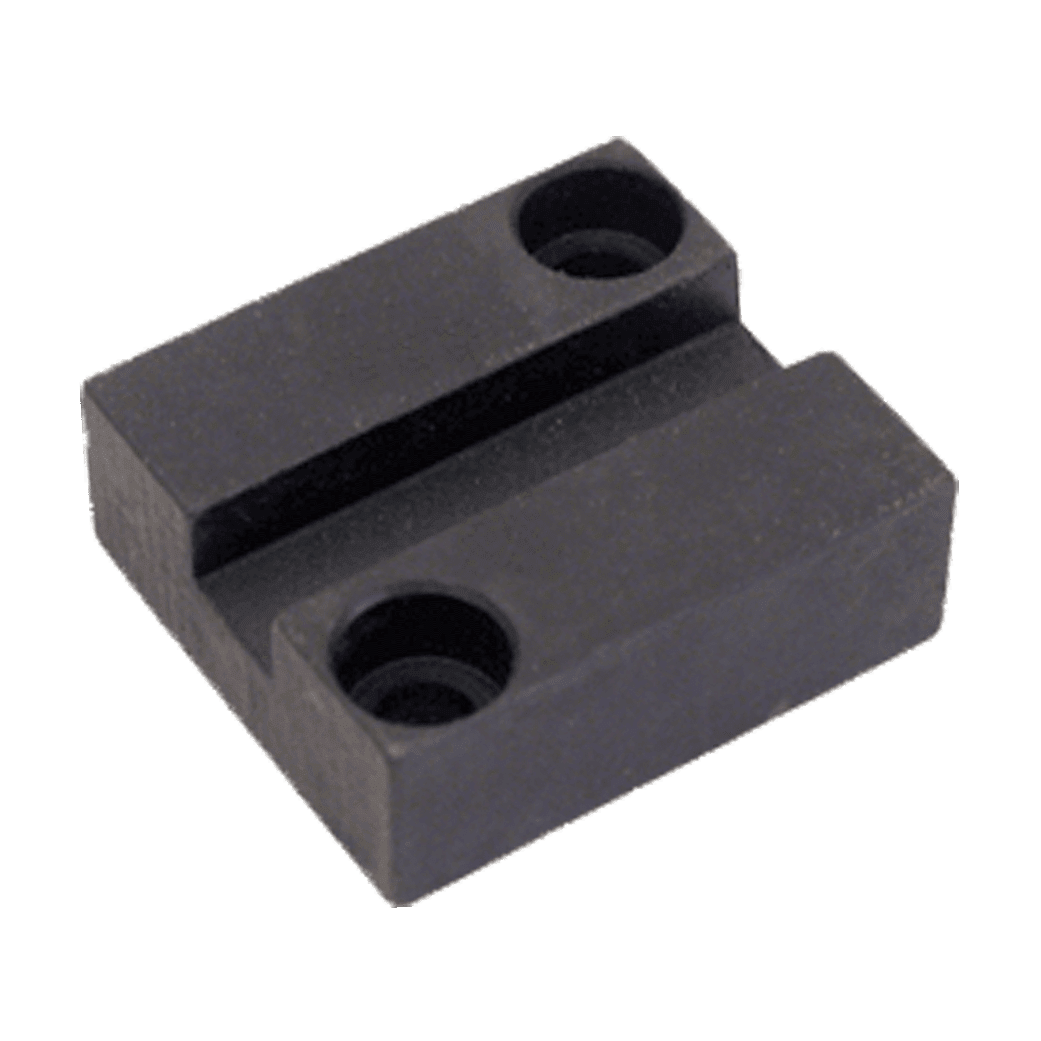

Rear-support sliding block for Tapped-Heel Clamp Straps. Guides clamp strap straight back for part loading. Available to fit clamp straps with stud sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Made in USA.

Additional information

Product Type

Guide Block

Stud Size

1/2 in – 13

Mounting Screw (G)

1/4 in – 20

Material

1018 Steel

Finish

Black Oxide

Overall Length (F)

1-11/16 in

Overall Width (D)

1-1/2 in

Overall Height (C)

5/8 in

Standards Met

DFARS;RoHS Compliant

Dimension (A)

0.39 in

Dimension (B)

0.25 in

Dimension (E)

1/4 in

Dimension (H)

1 in

Dimension (J)

1-3/16 in
