$17.72
Hand-Retractable Plunger
Spring-loaded plunger that locks in retracted position. To lock, pull knurled knob back and turn 90°. Slight taper on plunger tip for easy alignment. Available in thread sizes from #10-32 to 5/8-11 (M6 to M16 in metric), in steel or stainless steel. Made in USA.
| Product Type | Hand-Retractable Plunger |
|---|---|
| Thread Size | M6 |
| Initial End Force | 4 N |
| Final End Force | 22 N |

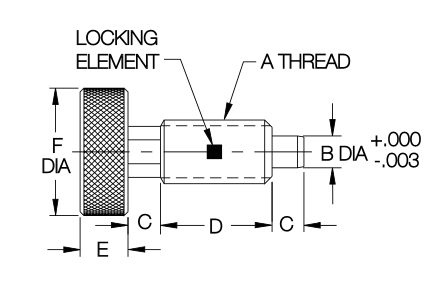

| Thread Length (D) | 12.5 mm |
| Nose Diameter (Nominal B) | 3 mm |
| Nose Extended Length (C) | 3.2 mm |
| Material | Body (1215 Steel)Plunger (1215 steel)Spring (17-7PH Stainless Steel) |
| Finish | Zinc Plated Clear Chromate |
| Handle Diameter (F) | 12.5 mm |
| Handle Length (E) | 6.5 mm |
| Thread Pitch | 1 mm |
| Standards Met | DFARS;RoHS Compliant |
