Description
Long-stroke spring-loaded plunger that locks in retracted position. Convenient L handle for quick retraction and locking. Available in thread sizes from 1/4-20 to 5/8-11, in steel or stainless steel. Made in USA.
Hand-Retractable Plunger – L Handle, Long Stroke (Locking Type)
$64.80
Brand: Carr Lane
Hand-Retractable Plunger – L Handle, Long Stroke (Locking Type)
Additional information

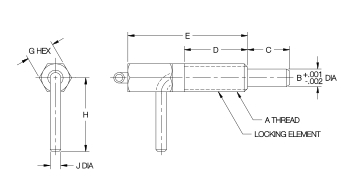

| Product Type | Hand-Retractable Plunger |
|---|---|
| Thread Size | 5/8 in – 11 |
| Initial End Force | 1 lb |
| Final End Force | 5 lb |
| Thread Length | 1-3/4 in |
| Nose Diameter (B) | 0.375 in |
| Nose Length (C) | 1 in |
| Material | 300 Stainless Steel |
| Finish | Zinc Plated |
| Handle Diameter (J) | 3/16 in |
| Handle Length (H) | 1-5/16 in |
| Hex Size (G) | 5/8 in |
| Standards Met | DFARS;RoHS Compliant |
| Body Length (E) | 3 in |
| Spring Material | 17-7PH stainless steel |
