$62.00

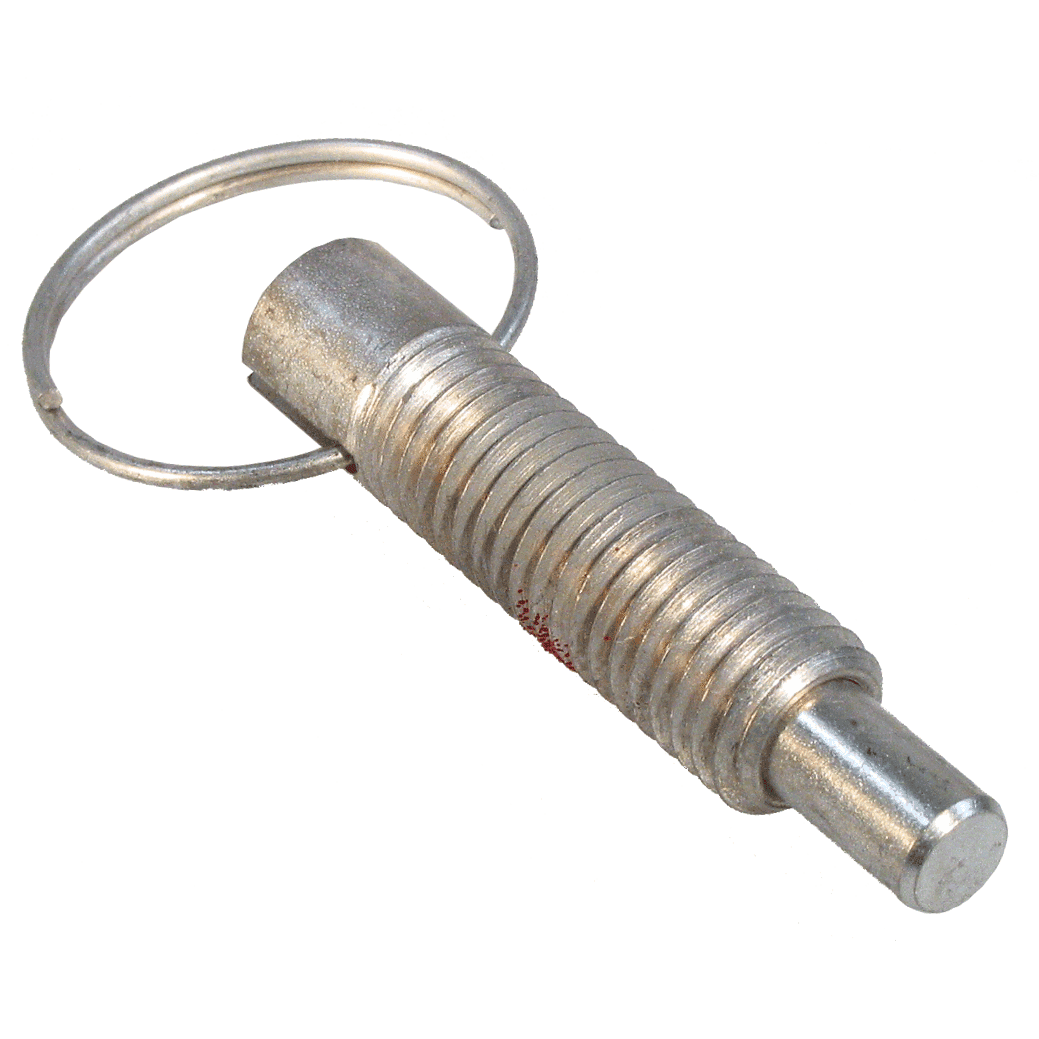

Hand-Retractable Plunger – Pull Ring
Spring-loaded plunger that locks in retracted position. Handy pull ring allows quick actuation, yet folds out of the way when not in use. To lock, pull the ring back and turn 90°. Available in thread sizes from 1/4-20 to 1/2-13, in steel or stainless steel. Made in USA.
| Product Type | Hand-Retractable Plunger |
|---|---|
| Thread Size | 1/2 in – 13 |
| Initial End Force | 2.5 lb |
| Final End Force | 5 lb |
| Thread Length | 1-7/16 in |
| Nose Diameter (B) | 0.312 in |
| Nose Extended Length (C) | 1/2 in |
| Material | Body (1215 Steel) |
| Finish | Zinc Plated |
| Handle Diameter (F) | 1-3/8 in |
| Length (E) | 2 in |
| Standards Met | DFARS;RoHS Compliant |
