Description
Spring-loaded plunger that locks in retracted position. Convenient L handle for quick retraction and locking. Available in threads sizes from 1/4-20 to 5/8-11, in steel or stainless steel. Made in USA.
Hand-Retractable Plunger – L Handle, Short Stroke (Locking Type)
$20.60
Brand: Carr Lane
Hand-Retractable Plunger – L Handle, Short Stroke (Locking Type)

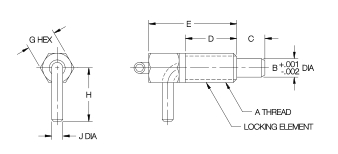

Additional information
| Product Type | Hand-Retractable Plunger |
|---|---|
| Thread Size | 1/4 in – 20 |
| Initial End Force | 0.12 lb |
| Final End Force | 0.5 lb |
| Thread Length | 7/16 in |
| Nose Diameter (B) | 0.156 in |
| Nose Length (C) | 3/16 in |
| Material | 300 Stainless Steel |
| Finish | Zinc Plated |
| Handle Diameter (J) | 3/32 in |
| Handle Length (H) | 9/16 in |
| Hex Size (G) | 1/4 in |
| Standards Met | DFARS;RoHS Compliant |
| Body Length (E) | 3/4 in |
| Spring Material | 17-7PH stainless steel |
