Description

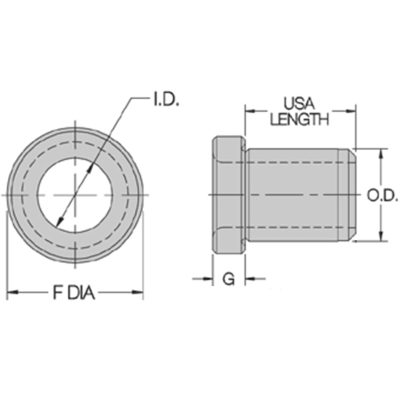

H Bushings are similar to P bushings, but with a head to resist heavy axial loads. Type H bushings are permanently pressed into the jig plate. H bushings are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling’s lifetime. The head of type H bushings can be left exposed, or recessed by counterboring the installation hole. To order a specific standard type H bushing, select the basic part number below and add the desired ID drill size (as a 4-place decimal inch) on the Price & Availability screen. See Technical Information tab for Standard Drill Sizes. Standard prices apply only to bushings with a standard inch, number, letter, or metric ID size within the stated range. The Part Configurator link at the top of this page can be used for any H bushing, either standard or special. Example standard bushings: H-20-16-.1250 1/8″ ID (.1250) H-20-16-.1772 4.50mm ID (.1772) H-20-16U-.1250 1/8″ ID (.1250) with unground OD (add “U” on Price & Availability screen)
