Heavy-Duty Rest Pad (Rectangular Pad)

Heavy-Duty Rest Pad (Rectangular Pad)

$35.98


Brand: Carr Lane

Heavy-Duty Rest Pad (Rectangular Pad)

SKU: CL-2-HDRP Category:

Description

Large, precision rest pad for heavy-duty applications. These hardened pads have a large, durable contact surface to support heavy workpieces. Ground for accurate height location. Mount with two socket-head cap screws (not furnished). Heavy-Duty Rest Pads are extremely useful as supports, side locator pads, or wear pads. Available in the three rectangular sizes shown here, and one square size. Made in USA.

Additional information

Product Type

Heavy-Duty Rest Pad

Material

1018 Steel

Finish

Black Oxide

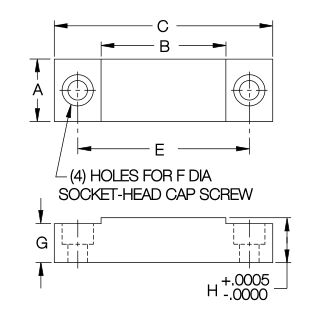

Dimension (E)

2-3/4 in

Dimension (F)

5/16 in – 18 or M8

Overall Width (A)

1 in

Overall Height (H)

0.75 in

Standards Met

DFARS;RoHS Compliant
