$52.18

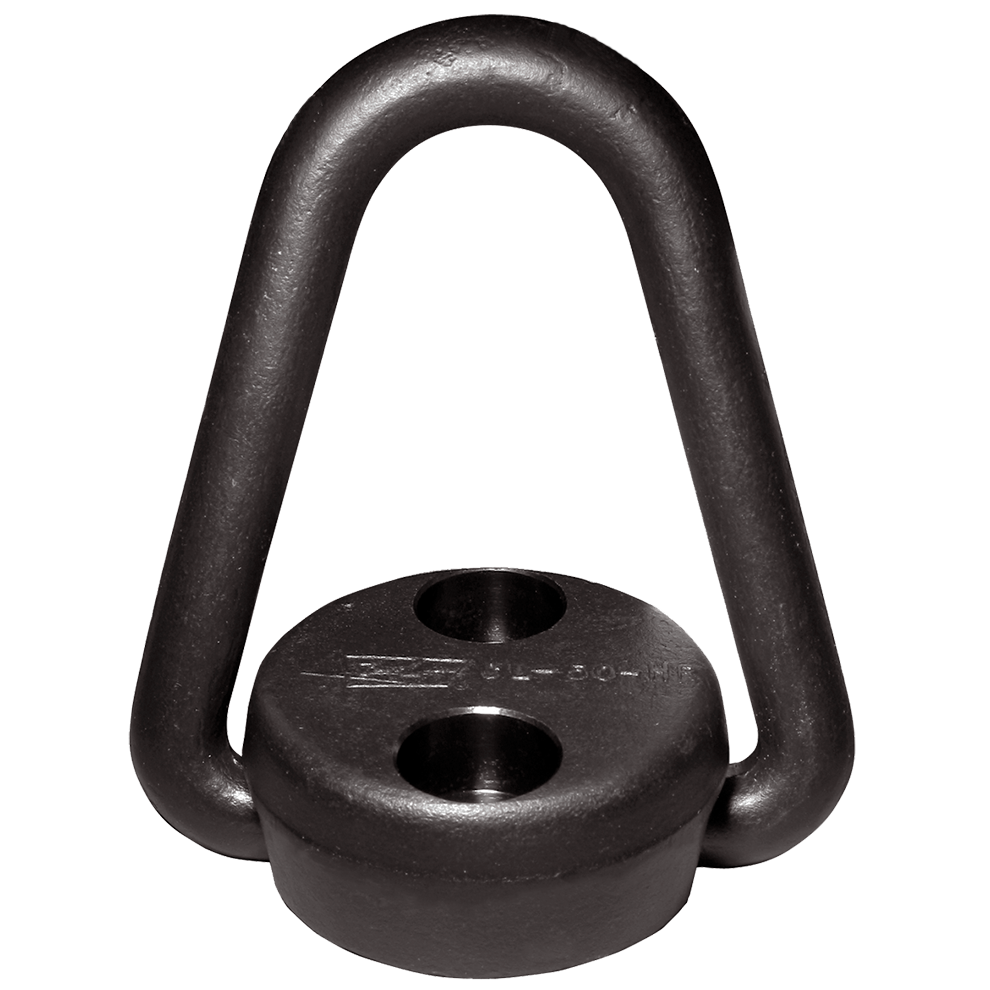

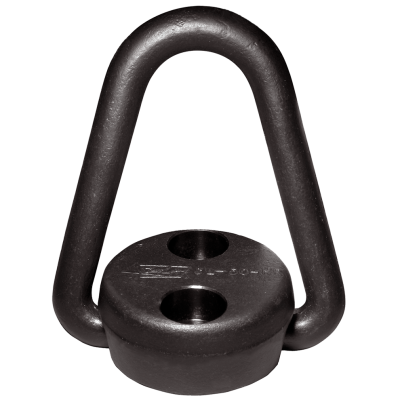

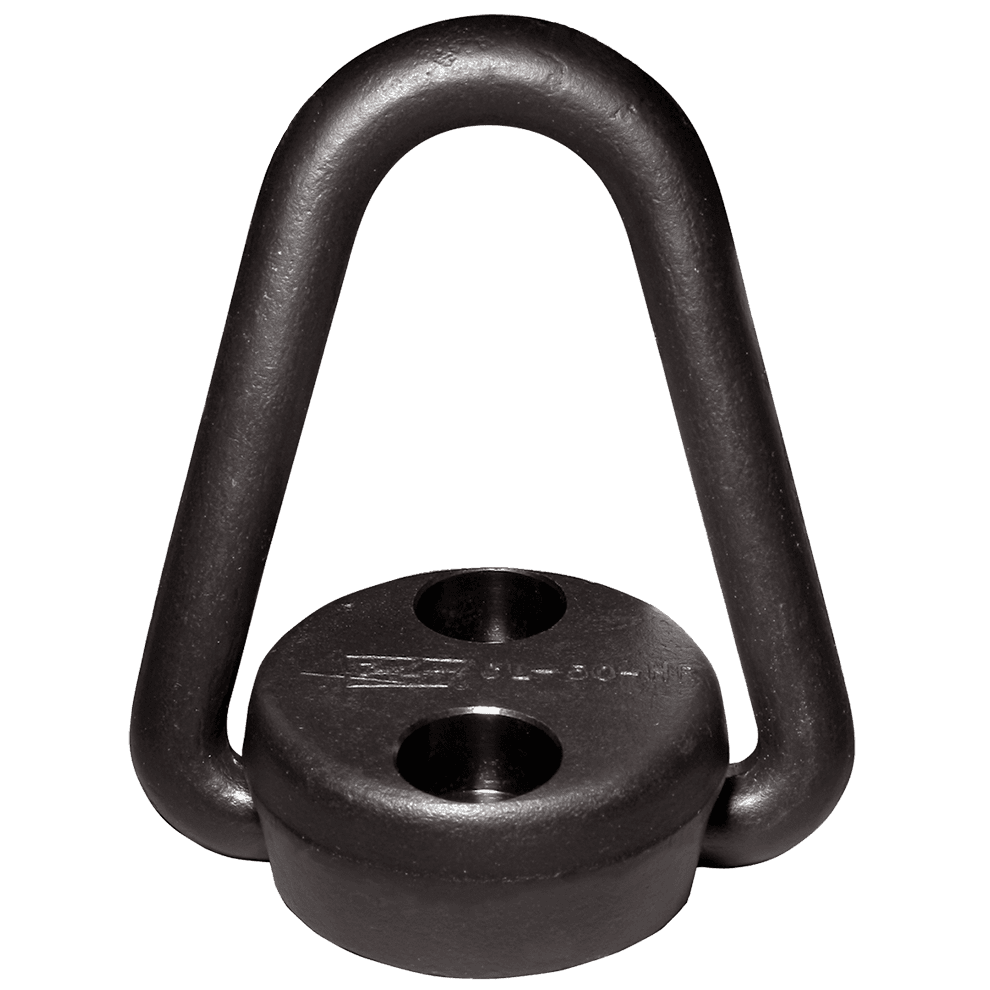

Pivoting Hoist Ring
Rugged, economical hoist ring with a low profile and high load capacity. Forged base and solid-loop forged ring. This hoist ring pivots a full 180°, but does not rotate. Safety factor = 5:1. Available in five sizes, with load capacities up to 20000 lbs. Made in USA.
| Product Type | Pivoting Hoist Ring |
|---|---|
| Maximum Load Rating | 5000 lb |
| Thread Size | 1/2 in – 13 |
| Thread Length | 1.5 |
| Material | Forged 1045 Steel |
| Finish | Black Oxide |
| Safety Factor (Min.) | 5:1 |
| Installation Torque | 20 to 25 lb |
| Standards Met | ASTM E-1444 |
| Dimension (Dia A) | 2-5/8 in |
| Dimension (C) | 1-1/2 in |
| Dimension (E) | 1-1/8 in |
| Dimension (F) | 3 in |
| Dimension (G) | 3-7/8 in |
| Dimension (Dia H) | 1/2 in |
| Dimension (R) | 3/4 in |
| Screw Extension Below Base | 0.9 |
