Description
- Modular design
- Hardened pivot pins and bushings
- Weldable clamping arm
- Bar opens 200 degrees to clear work area
- Pipe handle, mounting base, and bar options available

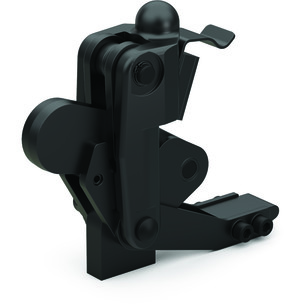

Vertical Hold-Down Toggle Locking Clamp
$322.98
Brand: Destaco
Vertical Hold-Down Toggle Locking Clamp
Additional information
| Product Type | Vertical Hold-Down Toggle Locking Clamp |
|---|---|
| Maximum Holding Capacity | 2400 lbf |
| Clamp Arm Length | 0.99 in |
| Clamp Bar Opening | 200° |
| Material | Forged Alloy Steel |
| Base Mounting Style | Swivel with Locking Spring Clip |
| Clamp Arm Style | Weldable |
| Handle Style | Vertical |
| Application | Welding;Machining;Wood Working;Food Processing |
| Duty Cycle | 3 |
| Height to Top of Clamp Arm | 3.89 in |
| Length | 4.44 in |
| Width | 1.89 in |
| Height | 5.43 in |
| Weight | 3.31 lb |
