Hook Clamp – Long Arm (Heavy)

Hook Clamp – Long Arm (Heavy)

$168.77


Brand: Carr Lane

Hook Clamp – Long Arm (Heavy)

SKU: CL-MF50-5002 Category:

Description

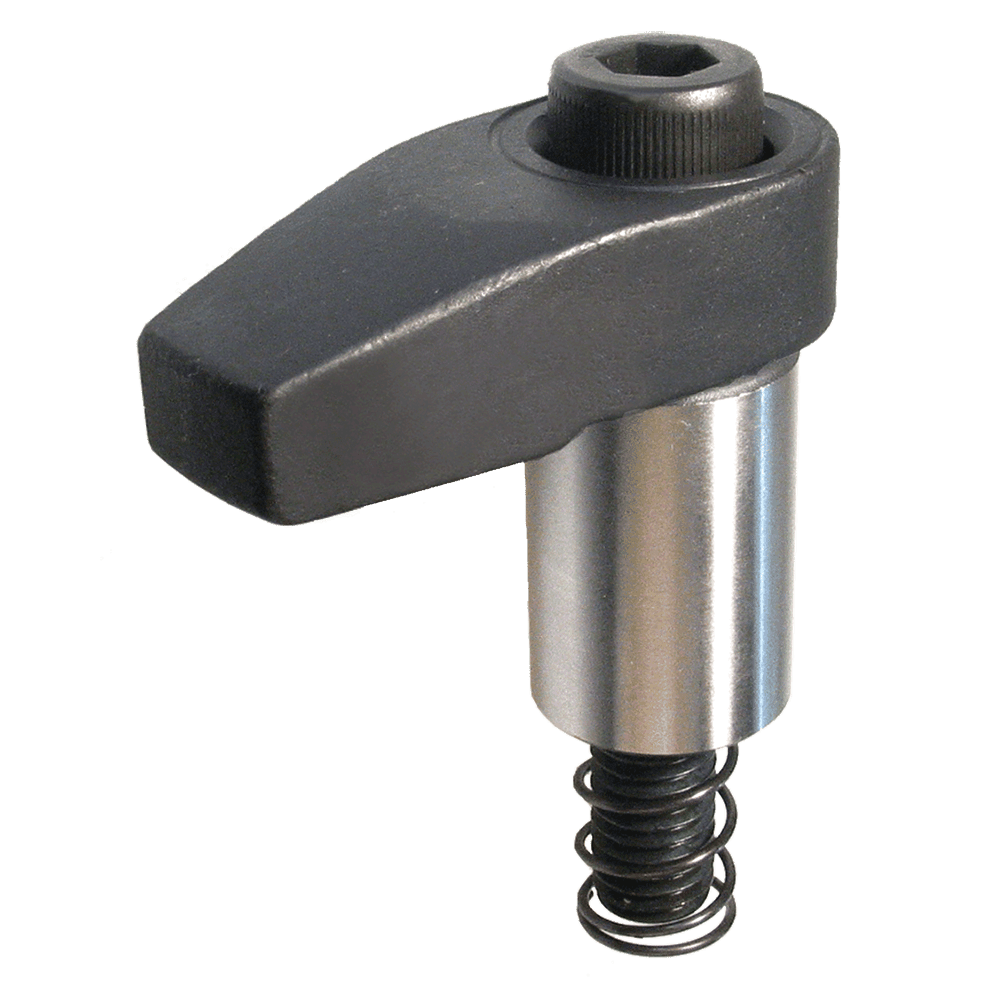

Hook Clamps are designed to manually swing into clamping position, then clamp straight down by screw action. These clamps allow clear loading while swung away in unclamped position. Ideal in tight spaces where high clamping force is required. Long-arm Hook Clamps are available with either a plain arm (shown here) or a tapped arm. Made in USA. The Hook Clamps shown here are for Heavy System MF50 (5/8-11 stud size). For our complete selection of Long-Arm Hook Clamps, see Related Products below.

Additional information

Product Type

Manual Swing Clamp

Thread Size

5/8 in – 11

Dimension (A)

2 in

Dimension (B)

1.25 in

Dimension (C)

2-7/8 in

Dimension (D)

3-7/8 in

Dimension (E)

1-7/16 in

Dimension (F)

7/8 in
