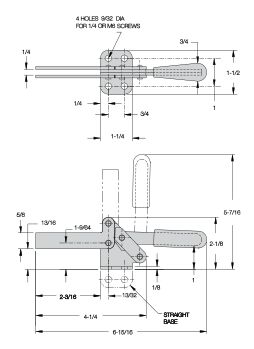

Toggle Clamp – CL-251-TC Series (625 lbs)
CL-251-TC Open Arm, Flanged Base Classic-design horizontal-handle clamp with a low clamping arm. Arm opens 90° while handle moves 90°. Open arm provides adjustable spindle location. Choice of flanged base or straight base. 625 lbs holding capacity.
| Product Type | Toggle Clamp |
|---|---|
| Maximum Holding Capacity | 625 lb |
| Material | 1008 Steel;1010 Steel;1018 Steel;400 Stainless (Rivets);Vinyl (Handle) |
| Finish | Zinc Plated Clear Chromate |
| Base Mounting Style | Straight |
| Arm Style | Open Arm |
| Handle Style | Horizontal |
| Standards Met | DFARS;RoHS Compliant |
