Toggle Clamp – CL-51-TC Series (100 lbs)

Name: Toggle Clamp - CL-51-TC Series (100 lbs)
SKU: CL-53-TC
Price: 47.16 CAD
Availability: InStock

Toggle Clamp – CL-51-TC Series (100 lbs)

$47.16

Brand: Carr Lane

Toggle Clamp – CL-51-TC Series (100 lbs)

SKU: CL-53-TC Category: Horizontal Handle Hold Down Toggle Clamps

Description
Technical Specification

Description

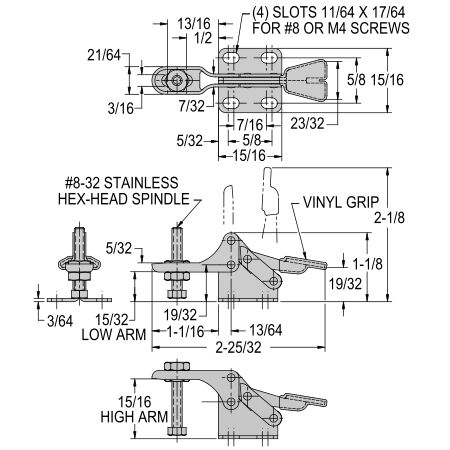

CL-51-TC Low Open Arm, Flanged Base Miniature stainless steel clamps, perfect for electronics fixturing and other light-duty applications. Arm opens 90° while handle moves 90°. Open arm provides adjustable spindle location (choice of low or high arm). Choice of flanged base or straight base. 100 lbs holding capacity.

Additional information

Product Type	Toggle Clamp
Maximum Holding Capacity	100 lb
Material	300 Stainless (Clamp Body);400 Stainless (Rivets);Vinyl (Handle)
Base Mounting Style	Flange
Arm Style	High Open
Handle Style	Horizontal
Standards Met	DFARS;RoHS Compliant
