$136.81
Toggle Clamp – CL-310-PA Series (2000 lbs)

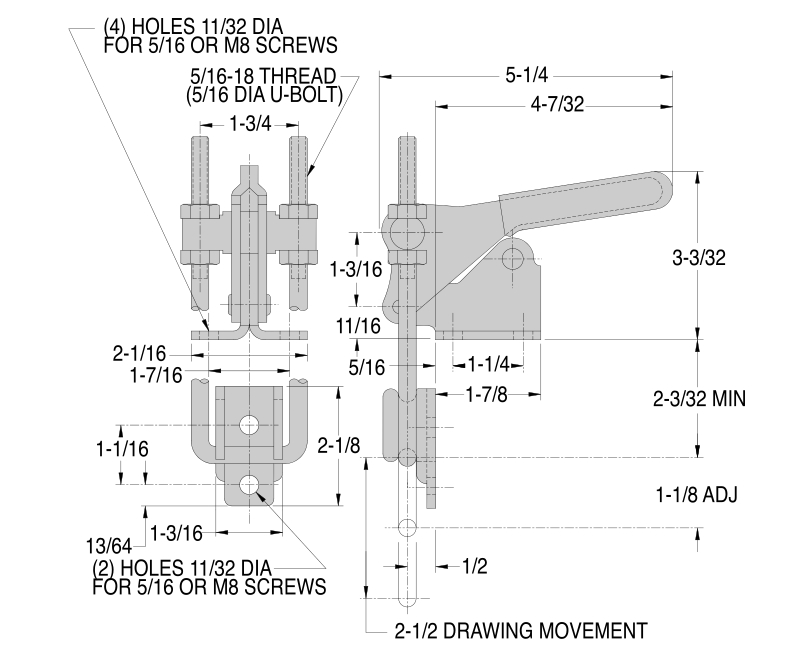

CL-310-PAVersatile latch clamp with a threaded U bolt for adjustability. Pulling direction is perpendicular to the base. Large, comfortable handle grip. 2-1/2″ drawing movement. Threaded U bolt allows a 1-1/8″ adjustment range. Available in steel or stainless steel. Supplied with matching latch plate. 2000 lbs holding capacity.
| Product Type | Toggle Clamp |
|---|---|
| Maximum Holding Capacity | 2000 lbf |
| Clamping Action | Pull |
| Clamp Type | Latch |
| Latch Plate Included | Yes |
| Material | 1008 Steel;1010 Steel;1018 Steel (Clamp Body);400 Stainless (Rivets);Vinyl (Handle);300 Stainless (Clamp Body) |
| Finish | Zinc Plated Clear Chromate |
| Mounting Type | Flanged |
| Handle Material | Vinyl |
| Standards Met | DFARS;RoHS Compliant |
