Toggle Clamp – CL-350-PA Series (1000 lbs)

Toggle Clamp – CL-350-PA Series (1000 lbs)

$77.06


Brand: Carr Lane

Toggle Clamp – CL-350-PA Series (1000 lbs)

SKU: CL-350-PA Category:

Description

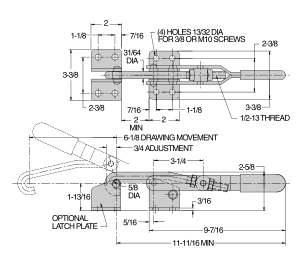

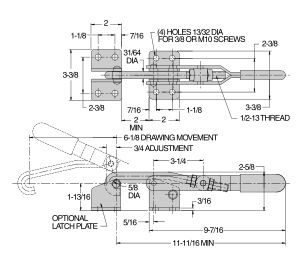

CL-350-PALatch clamp with a versatile hook for grasping a rod or rim. Clamp latches horizontally, vertically, or at any angle in between. 6-1/8″ drawing movement. Threaded hook allows an 3/4″ adjustment range. Order matching latch plate separately. 1000 lbs holding capacity.

Additional information

Product Type

Toggle Clamp

Maximum Holding Capacity

1000 lbf

Clamp Type

Latch

Draw Arm Style

Hook

Material

1215 Steel;1008 Steel;1010 Steel;1018 steel (Plunger and Links);400 Stainless (Rivets);Vinyl (Handle)

Finish

Zinc Plated Clear Chromate

Mounting Type

Flanged

Handle Material

Vinyl

Standards Met

DFARS;RoHS Compliant
