$25.10

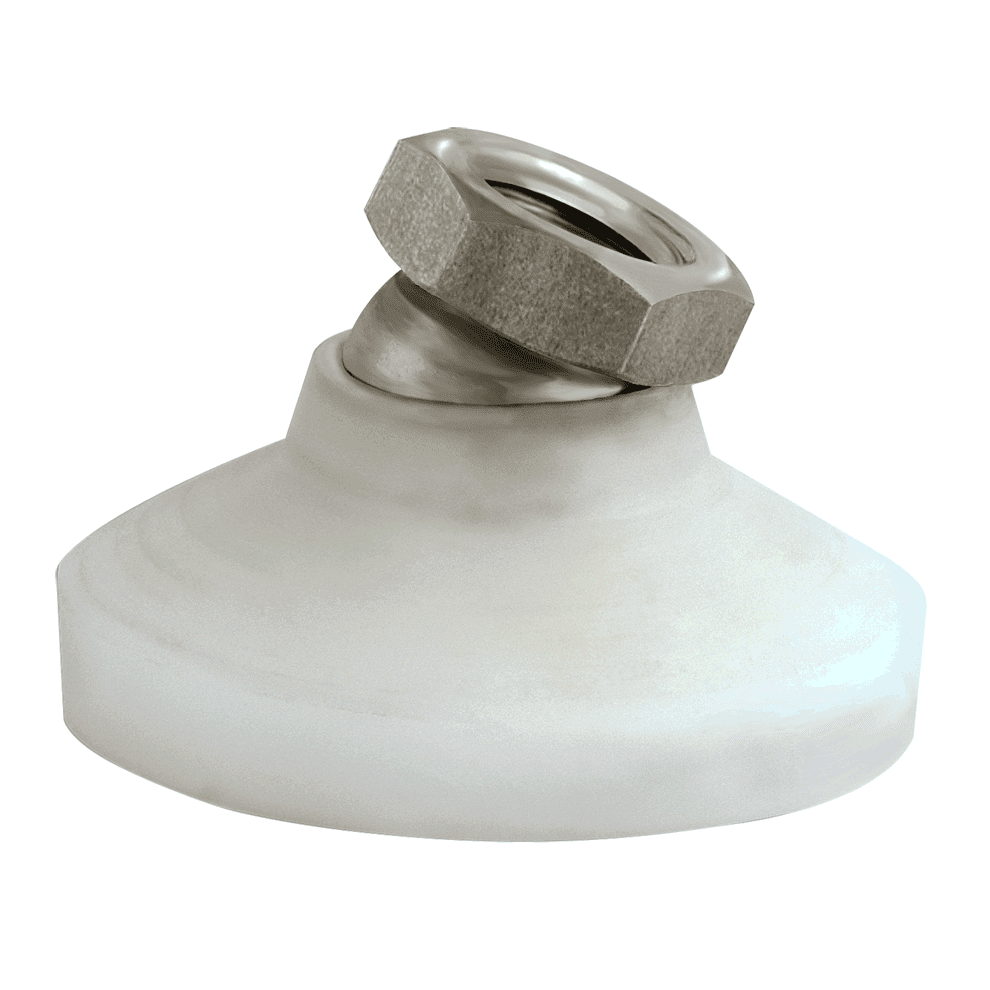

Leveling Feet (Stainless Steel with Delrin Pad)
High-quality, heavy-duty leveling foot with a large-diameter Delrin® pad. Large stainless-steel swivel ball provides extra corrosion resistance with a 20° total swivel angle. The Delrin® pad prevents marring, but has a lower load capacity than a stainless-steel pad. Available with tapped-hole sizes from #10-32 to 3/4-10 (M6 to M20 in metric). Made in USA.
| Product Type | Leveling Feet |
|---|---|
| Maximum Load Rating | 250 lb |
| Thread Size | 5/16 in – 18 |
| Material | 300 Stainless Steel |
| Pad Material | White Delrin® 500 |
| Thread Depth (F) | 3/8 in |
| Base Diameter (C) | 1-1/8 in |
| Base Height (D) | 3/16 in |
| Dimension (F) | 3/8 in |
| Depth (E) | 13/16 in |
| Standards Met | DFARS;RoHS Compliant |
