$226.69

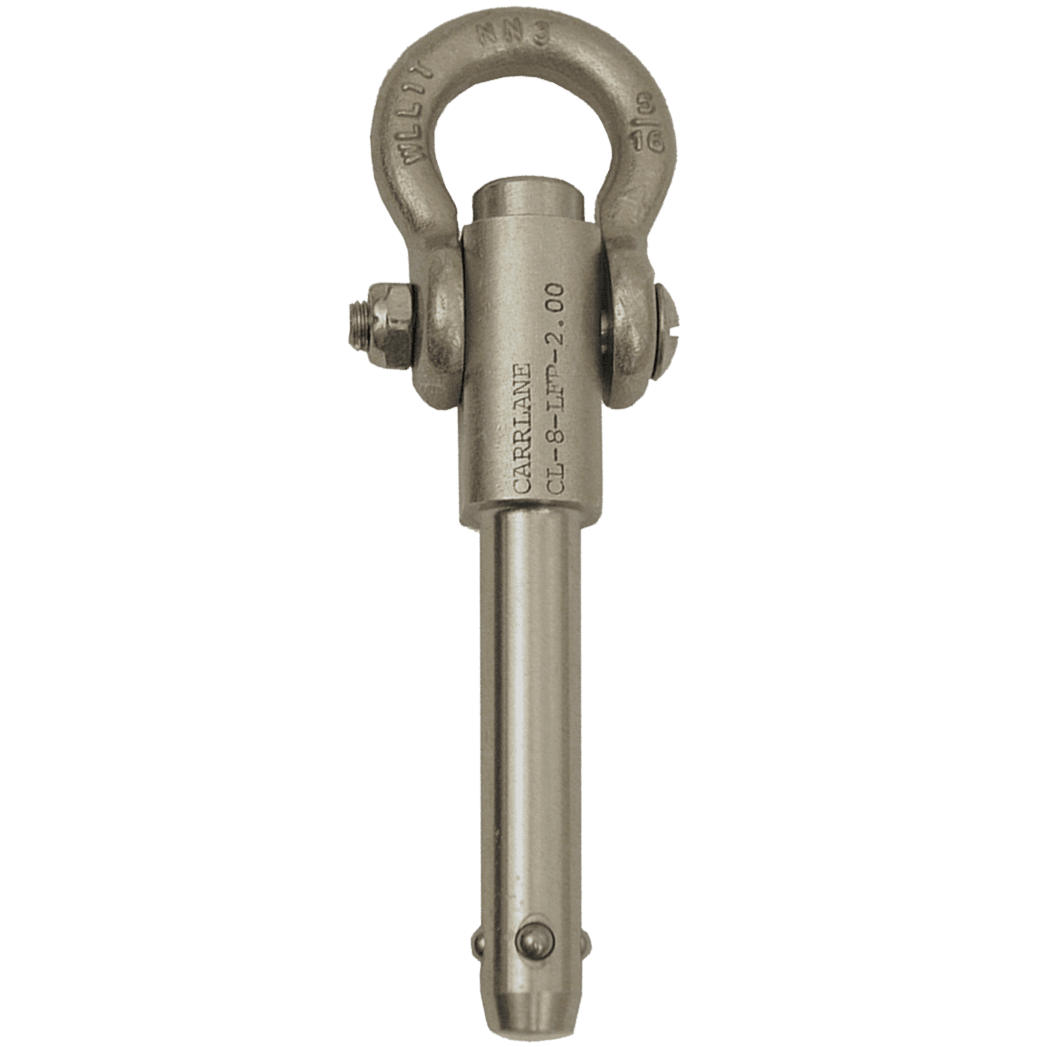

Lifting Pin (Alloy Steel)
Lifting Pins are single-acting Ball Lock Pins with a solid, one-piece body and four balls for high tension loads. Positive locking until released by pushing the button. Sturdy forged shackle for heavy lifting. The alloy-steel version shown here has a manganese phosphate finish that provides excellent lubricity and corrosion resistance. Available in shank diameters 1/4, 3/8, and 1/2″, each in a choice of several standard grip lengths. Made in Germany.
| Product Type | Lifting Pin |
|---|---|
| Nominal Pin Diameter | 3/8 in |
| Maximum Pin Diameter | 0.44 in |
| Grip Length | 2 in |
| Spring Material | Stainless Steel |
| Ball Material | 440C Stainless Steel |
| Pin Material | Alloy Steel |
| Finish | Phosphate |
| Lock Type | Ball |
| Tip to Ball Length (C) | 0.4 in |
| Head Length (G) | 1.94 in |
| Overall Diameter (E) | 0.85 in |
| Overall Height (F) | 1.93 in |
| Dimension (D) | 1.18 in |
| Dimension (H) | 1.5 in |
| Dimension (J) | 2.06 in |
| Dimension (K) | 1.01 in |
| Dimension (L) | 1.06 in |
| Dimension (M) | 0.37 in |
| Spindle Material | Alloy Steel |
| Shackle Material | Alloy Steel |
| Button Material | Alloy Steel |
| Cap Screw, Nut, and Bushing Material | Steel |
| Actual Diameter (A) | 0.3720/0.3735 in |
