$16.67
Liner Bushing

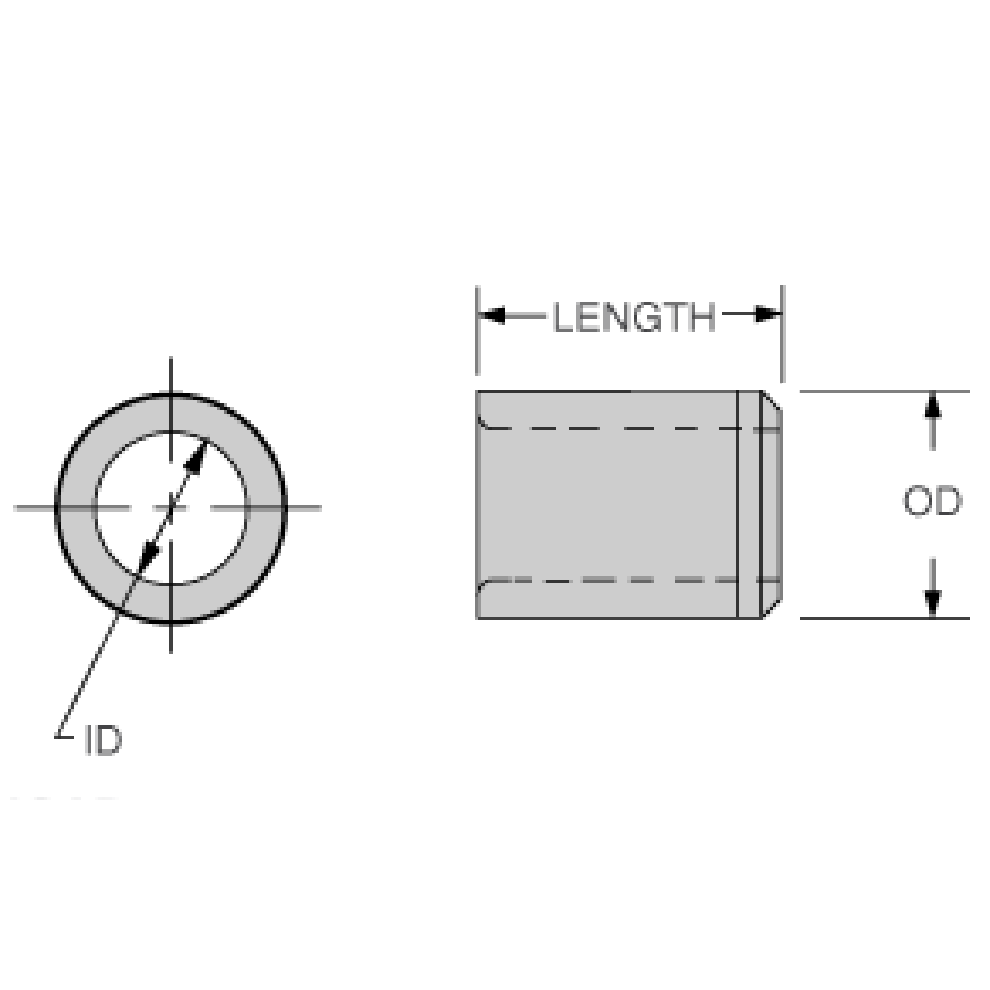

Liners are permanently installed bushings used to hold renewable drill bushings. The liner’s ID has a precise sliding fit with the renewable bushing’s OD. The liner accurately locates the renewable bushing and protects the jig plate from wear and damage caused by frequent bushing replacement. Complete part numbers for all standard Liner bushings are listed in the tables below.
| Product Type | Liner Bushing |
|---|---|
| Inside Diameter | 3/16 in |
| Outside Diameter | 5/16 in |
| Head Type | L Bushing |
| Material | Steel |
| Hardness | Heat Treated to Achieve Rc 62-64 ID Hardness |
| Mounting Type | Press-Fit |
| Inside Diameter Tolerance | +0.0001 to +0.0004 in |
| Outside Diameter Tolerance | +0.0017 to +0.0014 in |
| Length | 3/8 in |
| Standards Met | DFARS;RoHS Compliant |
| Stressproof (Yes/No) | Yes |
