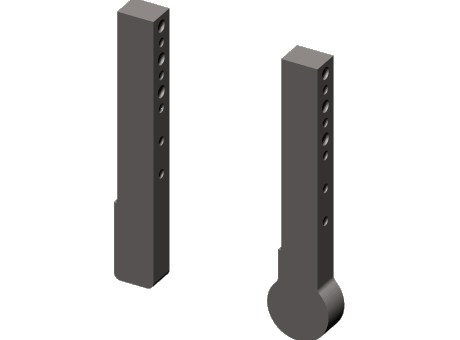

NAAMS ACA011 Power Clamp Arm

NAAMS ACA011 Power Clamp Arm


Brand: NAAMS

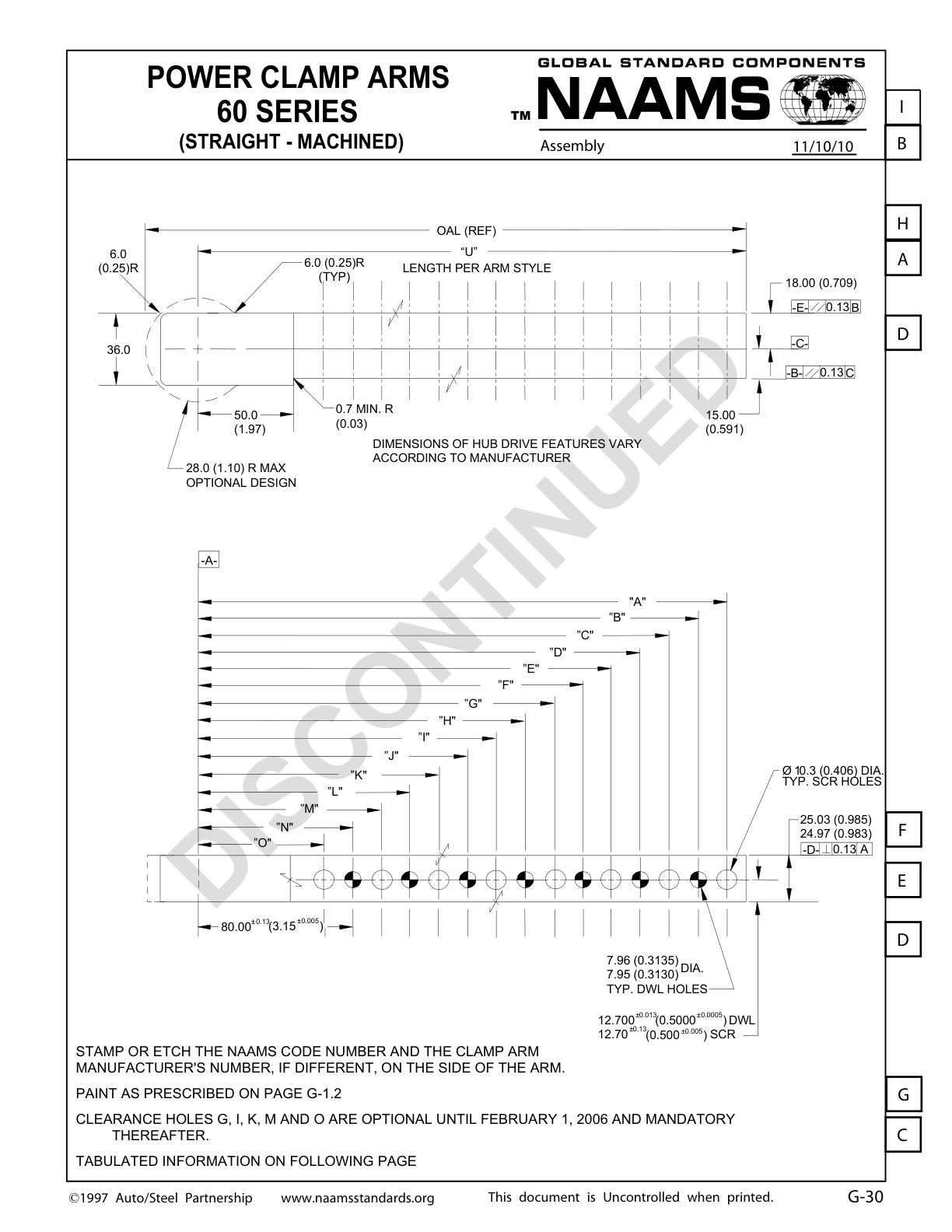

POWER CLAMP ARMS 60 SERIES (STRAIGHT – MACHINED)

SKU: ACA011 Category:

Additional information

Product Type

Power Clamp Arm

Series

60

Clamp Style

Straight

Center to End Length

10.04 in

Material Grade

4140 or Equivalent

Machining Tolerance

+/- 0.3

Fabrication Tolerance

+/- 1.5

Overall Length

11.14 in

Overall Height

36 mm

Weight

3.5 lb

Dimension (A)

9.646 in

Dimension (B)

9.055 in

Dimension (C)

8.464 in

Dimension (D)

7.874 in

Dimension (E)

7.283 in

Dimension (F)

6.693 in

Dimension (G)

6.1 in

Dimension (H)

6.102 in

Dimension (I)

5.512 in

Dimension (J)

4.331 in

Dimension (K)

3.74 in

Dimension (L)

3.15 in

Dimension (M)

2.559 in
