Additional information

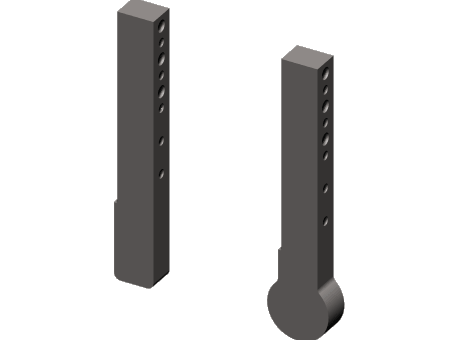

| Product Type | Power Clamp Arm |
|---|---|
| Series | 60 |
| Clamp Style | Straight |
| Center to End Length | 11.22 in |
| Material Grade | 4140 or Equivalent |
| Machining Tolerance | +/- 0.3 |
| Fabrication Tolerance | +/- 1.5 |
| Overall Length | 12.32 in |
| Overall Height | 36 mm |
| Weight | 4 lb |

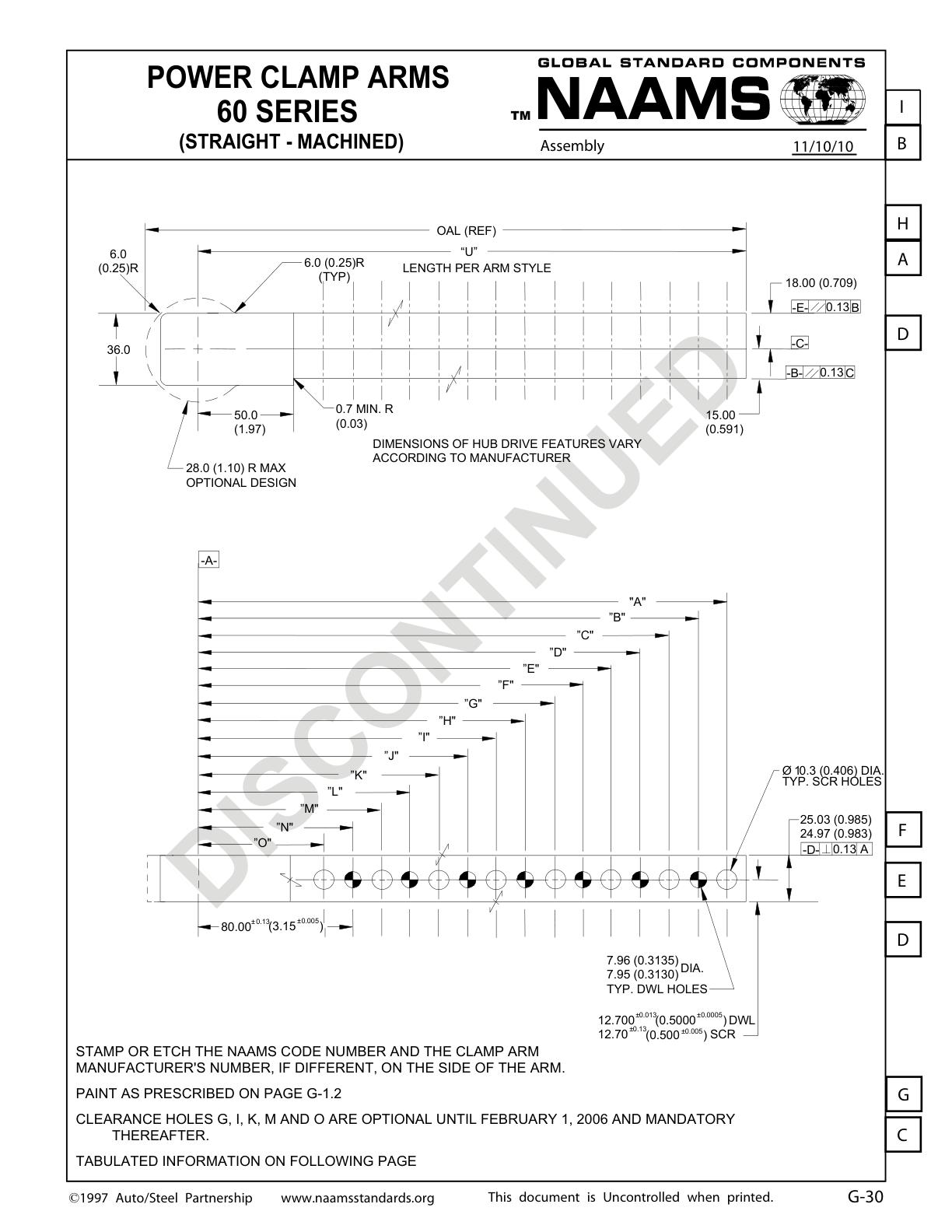

| Dimension (A) | 10.827 in |
| Dimension (B) | 10.236 in |
| Dimension (C) | 9.646 in |
| Dimension (D) | 9.055 in |
| Dimension (E) | 8.464 in |
| Dimension (F) | 7.874 in |
| Dimension (G) | 7.28 in |
| Dimension (H) | 7.283 in |
| Dimension (I) | 6.693 in |
| Dimension (J) | 5.512 in |
| Dimension (K) | 4.921 in |
| Dimension (L) | 4.331 in |
| Dimension (M) | 3.74 in |
