Additional information

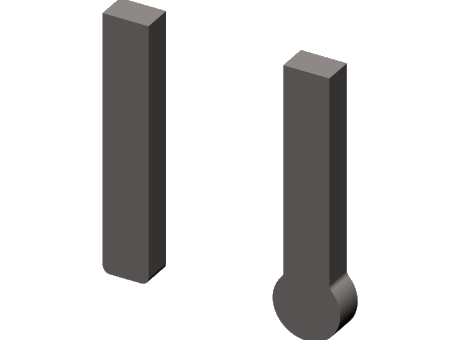

| Product Type | Power Clamp Arm Blanks |
|---|---|
| Series | 80/90 |
| Clamp Style | Straight |
| Center to End Length | 14.37 in |
| Material Grade | SAE 4140 or SAE 1045 |
| Machining Tolerance | +/- 0.3 |
| Fabrication Tolerance | +/- 1.5 |
| Overall Length | 15.83 in |
| Overall Width | 1.97 in |
| Weight | 10.4 lb |
