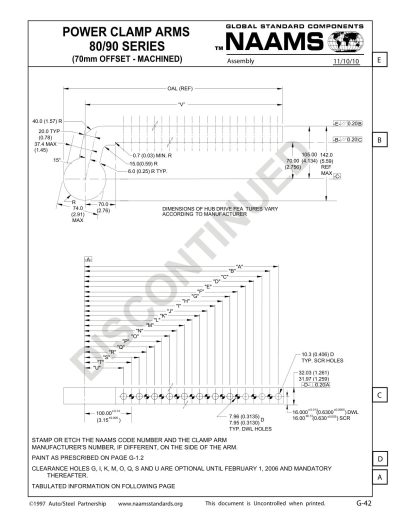

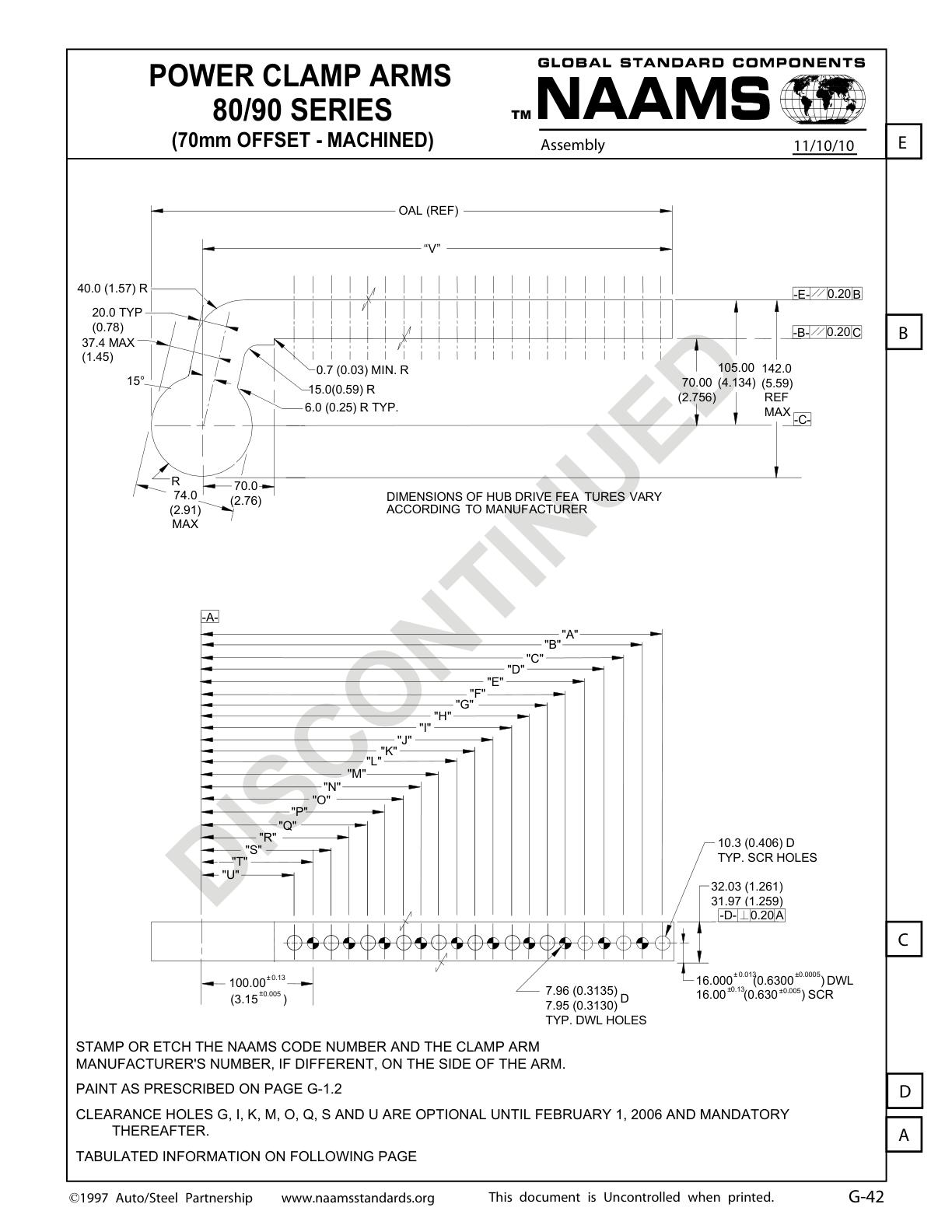

Additional information

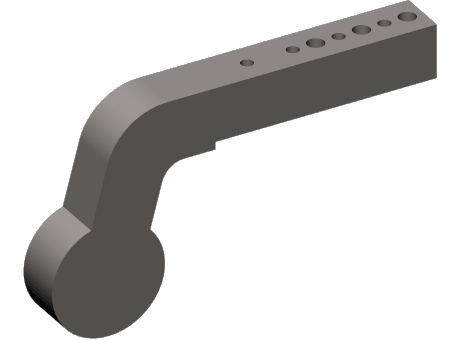

| Product Type | Power Clamp Arm |
|---|---|
| Series | 80/90 |
| Clamp Style | Off set |
| Offset Size | 70 mm |
| Center to End Length | 155 mm |
| Material Grade | SAE 4140 or SAE 1045 |
| Machining Tolerance | +/- 0.3 |
| Fabrication Tolerance | +/- 1.5 |
| Overall Length | 192 mm |
| Overall Height | 142 mm |
| Weight | 2.4 kg |
| Dimension (A) | 145 mm |
| Dimension (B) | 130 mm |
| Dimension (C) | 115 mm |
| Dimension (D) | 100 mm |
| Dimension (E) | 85 mm |
