Additional information

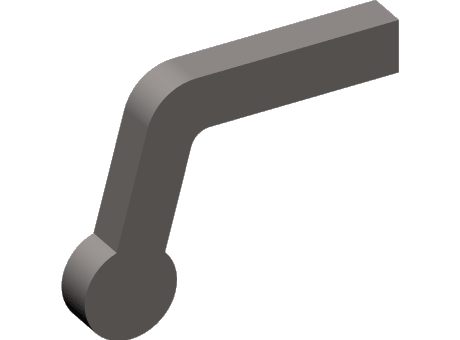

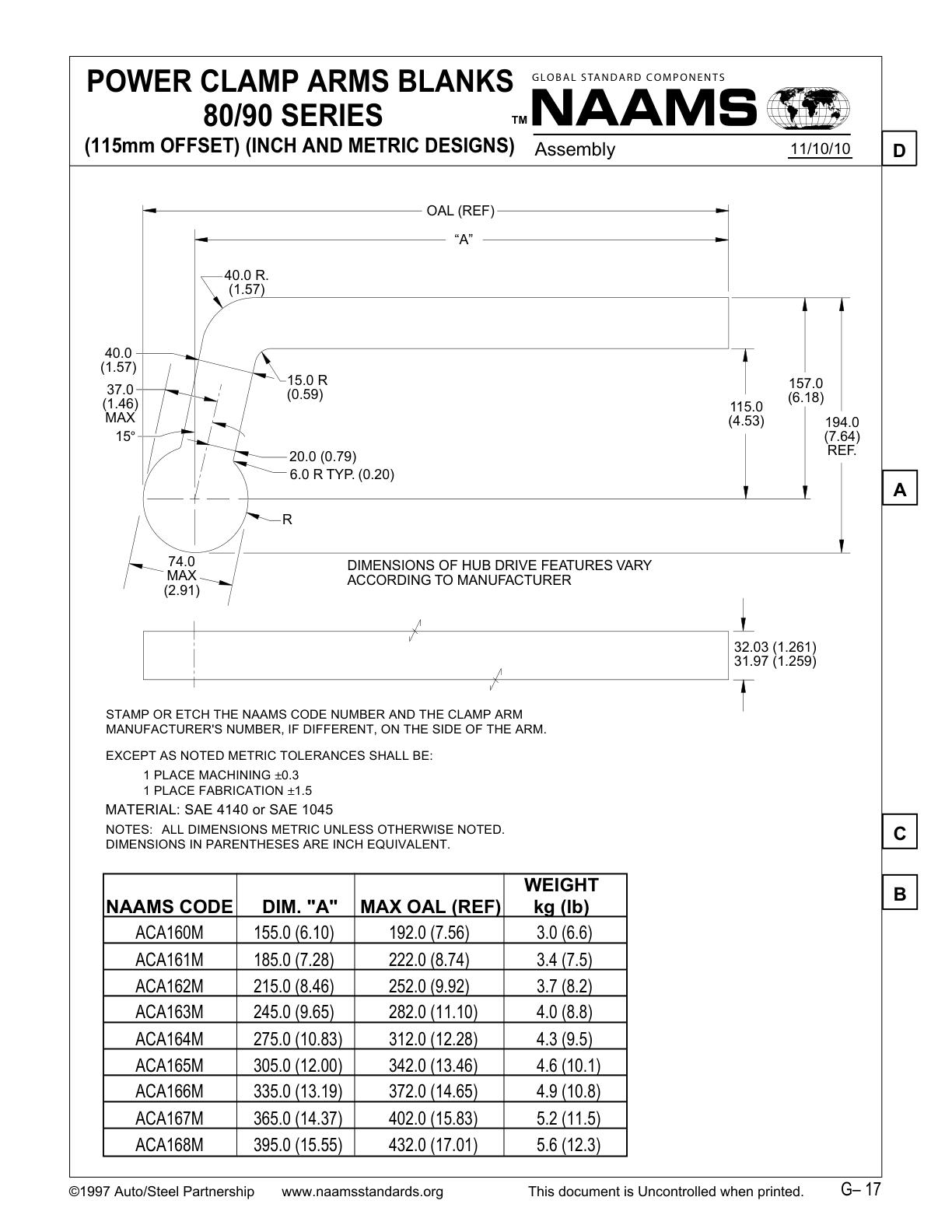

| Product Type | Power Clamp Arm Blank |
|---|---|
| Series | 80/90 |
| Clamp Style | Off set |
| Offset Size | 115 mm |
| Center to End Length | 10.83 in |
| Material Grade | SAE 4140 or SAE 1045 |
| Machining Tolerance | +/- 0.3 |
| Fabrication Tolerance | +/- 1.5 |
| Overall Length | 12.28 in |
| Overall Height | 7.64 in |
| Weight | 9.5 lb |
