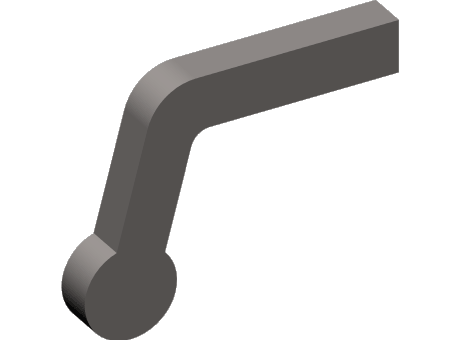

NAAMS ACA165 Power Clamp Arm Blank

NAAMS ACA165 Power Clamp Arm Blank

Brand: NAAMS

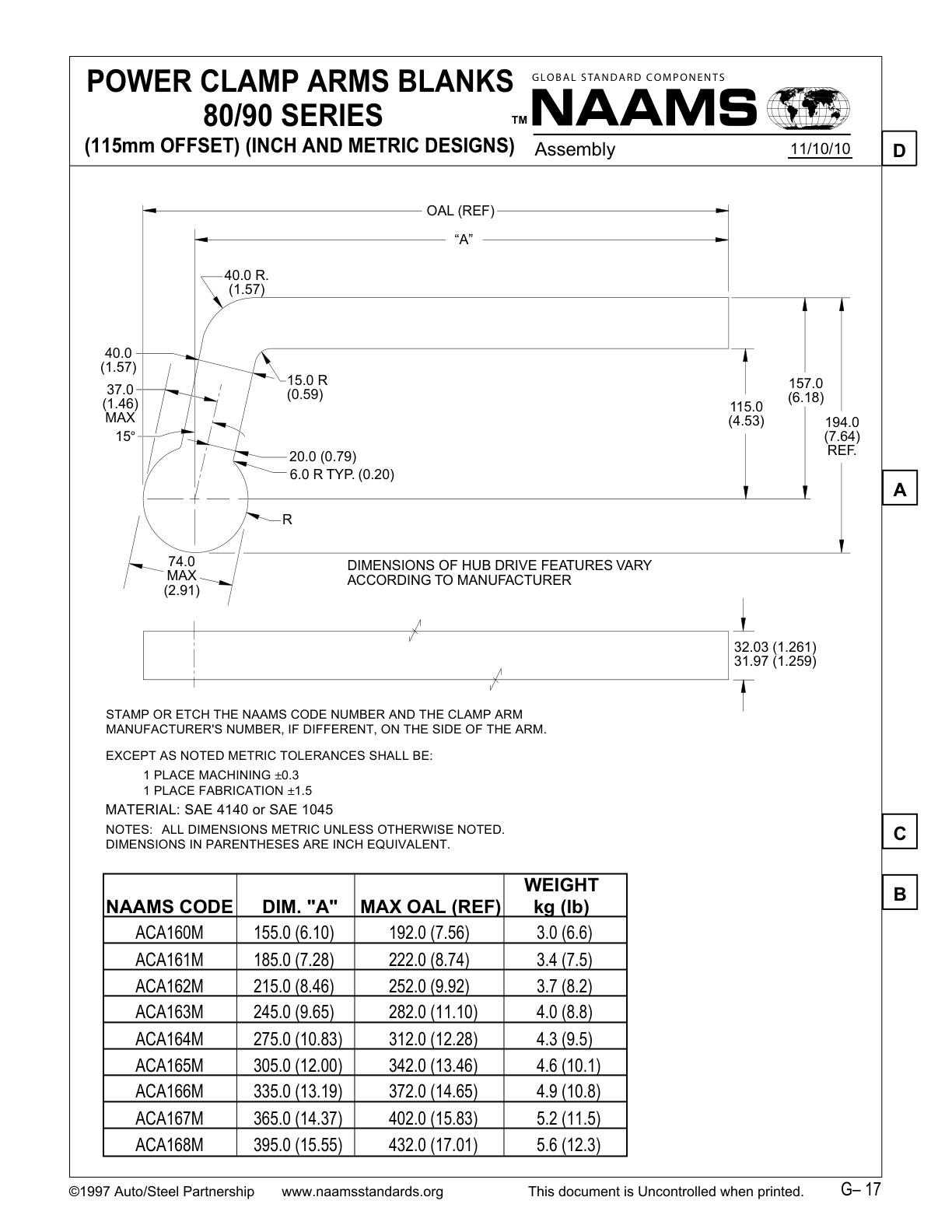

POWER CLAMP ARMS BLANKS 80/90 SERIES (115mm OFFSET) (INCH AND METRIC DESIGNS)

SKU: ACA165 Category: NAAMS Power Clamp Arms

Technical Specification

Additional information

Product Type	Power Clamp Arm Blank
Series	80/90
Clamp Style	Off set
Offset Size	115 mm
Center to End Length	12 in
Material Grade	SAE 4140 or SAE 1045
Machining Tolerance	+/- 0.3
Fabrication Tolerance	+/- 1.5
Overall Length	13.46 in
Overall Height	7.64 in
Weight	10.1 lb
