Additional information

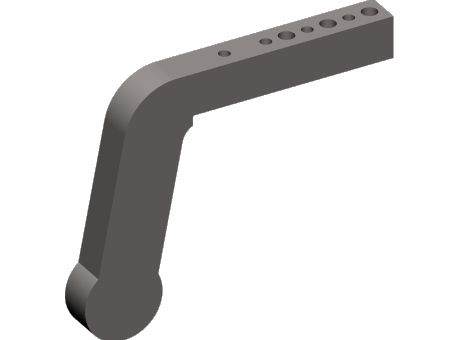

| Product Type | Power Clamp Arm |
|---|---|
| Series | 60 |
| Clamp Style | Off set |
| Offset Size | 25 mm |
| Center to End Length | 255 mm |
| Material Grade | SAE 4140 or SAE 1045 |
| Machining Tolerance | +/- 0.3 |
| Fabrication Tolerance | +/- 1.5 |
| Overall Length | 283 mm |
| Overall Width | 20 mm |
| Overall Height | 83 mm |
| Weight | 1.6 kg |

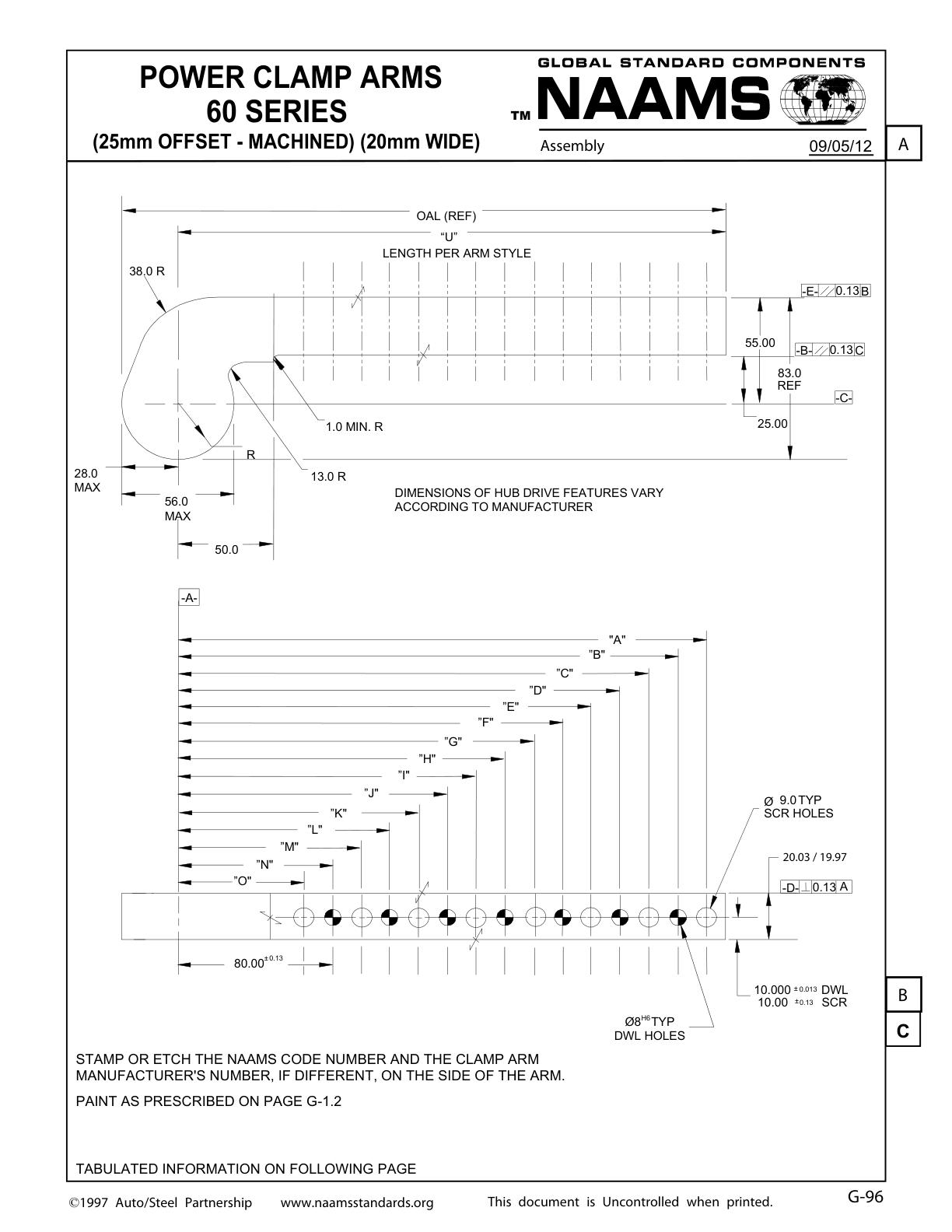

| Dimension (A) | 245 mm |
| Dimension (B) | 230 mm |
| Dimension (C) | 215 mm |
| Dimension (D) | 200 mm |
| Dimension (E) | 185 mm |
| Dimension (F) | 170 mm |
| Dimension (H) | 155 mm |
| Dimension (I) | 140 mm |
| Dimension (J) | 125 mm |
| Dimension (K) | 110 mm |
| Dimension (L) | 95 mm |
| Dimension (M) | 80 mm |
| Dimension (N) | 65 mm |
