Additional information

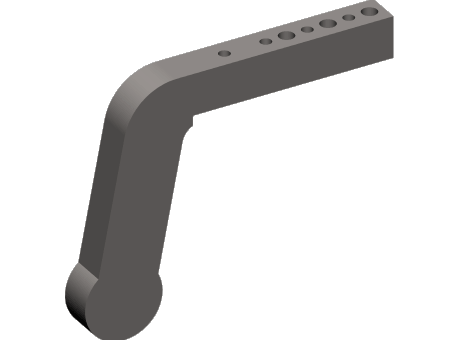

| Product Type | Power Clamp Arm |
|---|---|
| Series | 60 |
| Clamp Style | Off set |
| Offset Size | 120 mm |
| Center to End Length | 165 mm |
| Material Grade | SAE 4140 or SAE 1045 |
| Machining Tolerance | +/- 0.3 |
| Fabrication Tolerance | +/- 1.5 |
| Overall Length | 193 mm |
| Overall Width | 20 mm |
| Overall Height | 178 mm |
| Weight | 2 kg |

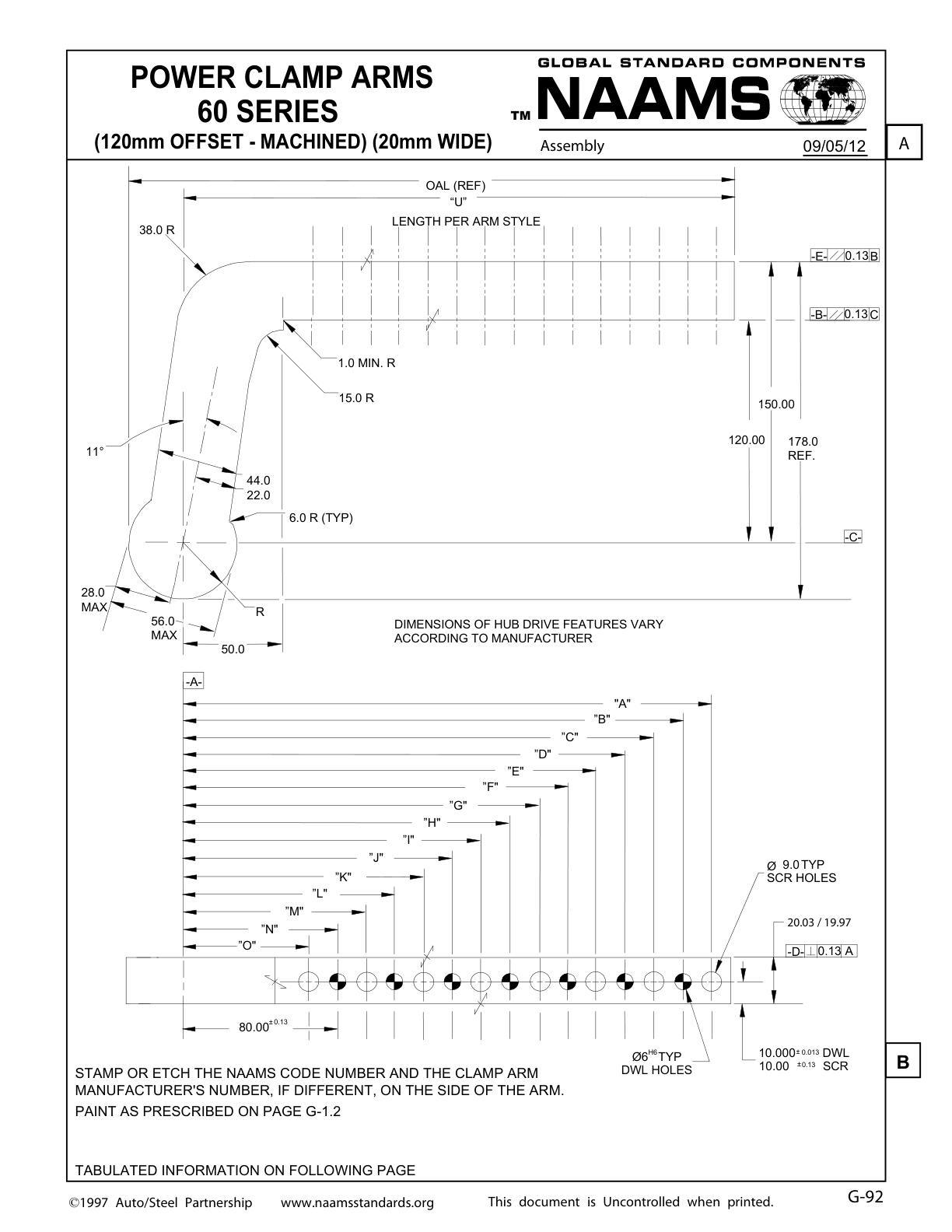

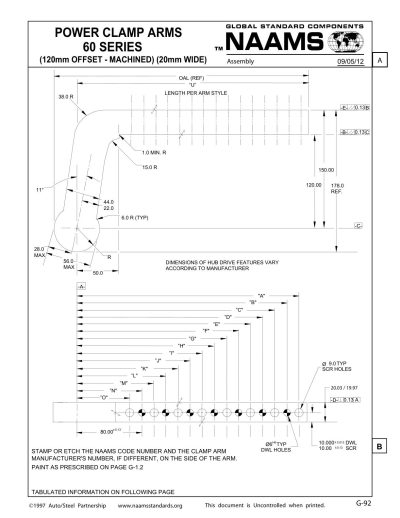

| Dimension (A) | 155 mm |
| Dimension (B) | 140 mm |
| Dimension (C) | 125 mm |
| Dimension (D) | 110 mm |
| Dimension (E) | 95 mm |
| Dimension (F) | 80 mm |
| Dimension (H) | 65 mm |
