Additional information

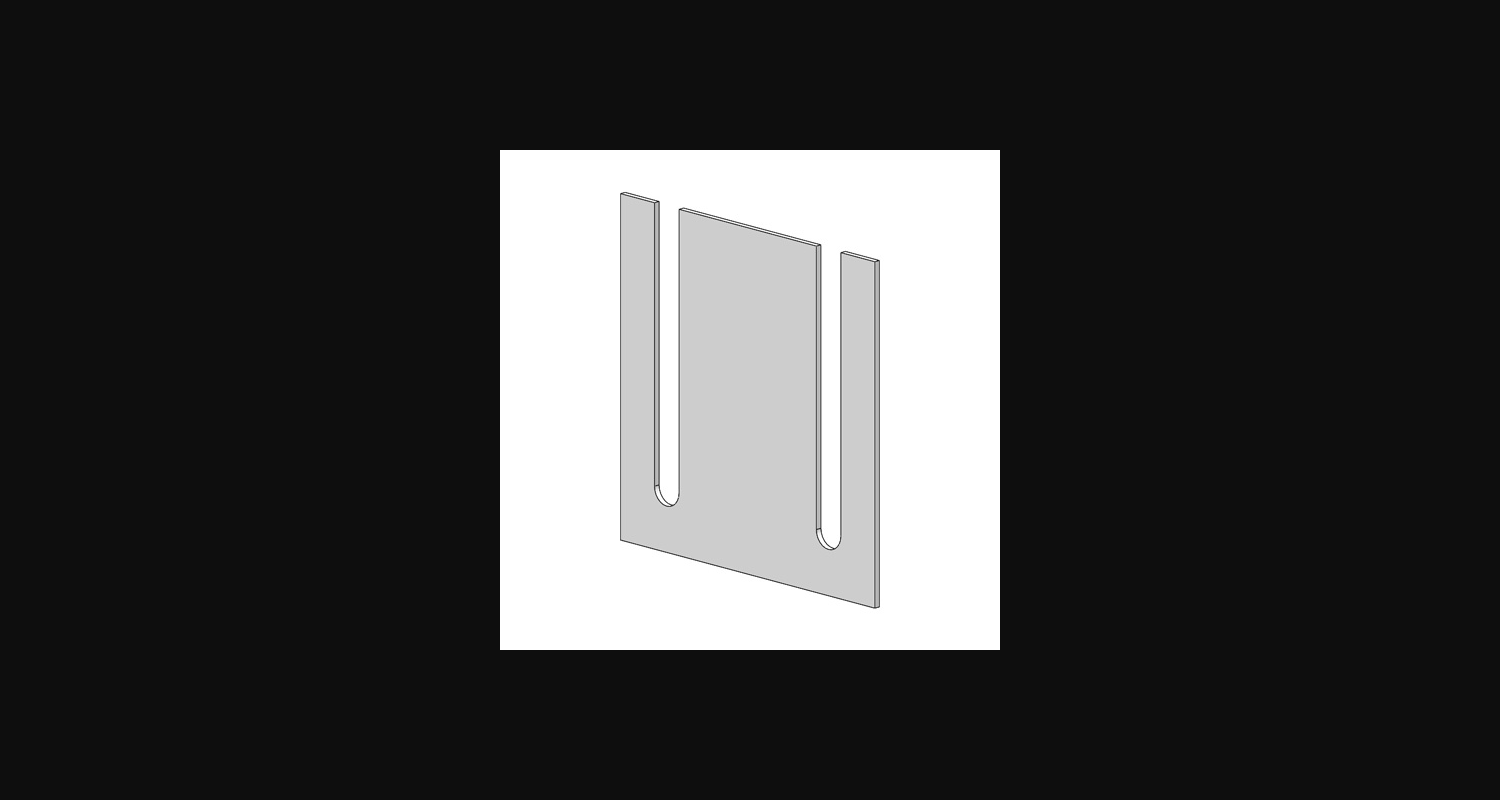

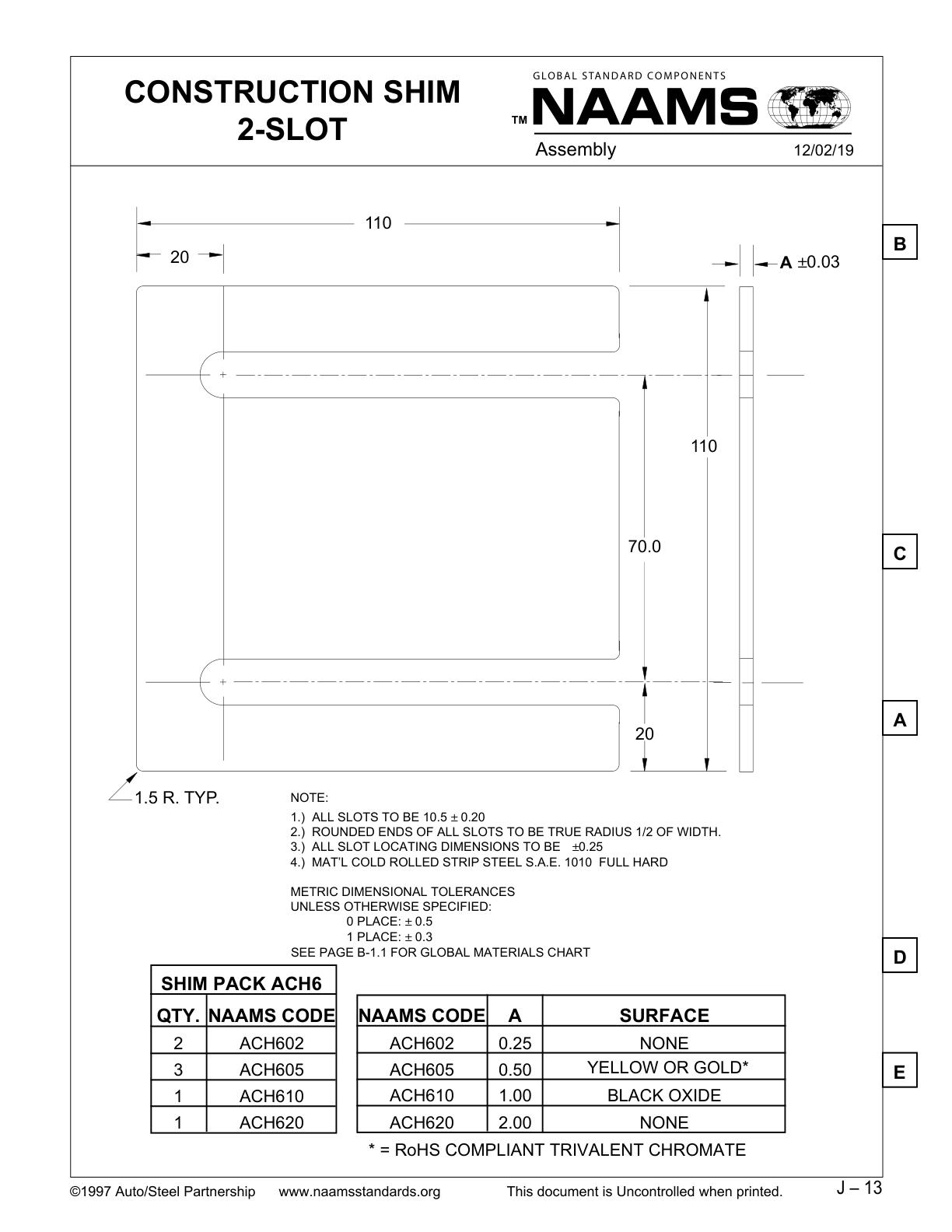

| Product Type | Construction Shim |
|---|---|
| Series | ACH6 |
| Number of Slots | 2 |
| Slot End Type | Round |
| 2 Slot Center to Center Length | 70 mm |
| Slot Center to Edge Length | 20 mm |
| Radius | 1.5 mm |
| Material | Steel |
| Finish | Yellow or Gold |
| Material Grade | S.A.E. 1010 FULL HARD |
| Thickness | 0.50 mm |
| Center to End Width | 20 mm |
| Overall Length | 110 mm |
| Overall Width | 110 mm |
| Standard Mets | RoHS Compliant |
| Package Quantity | 3 |
