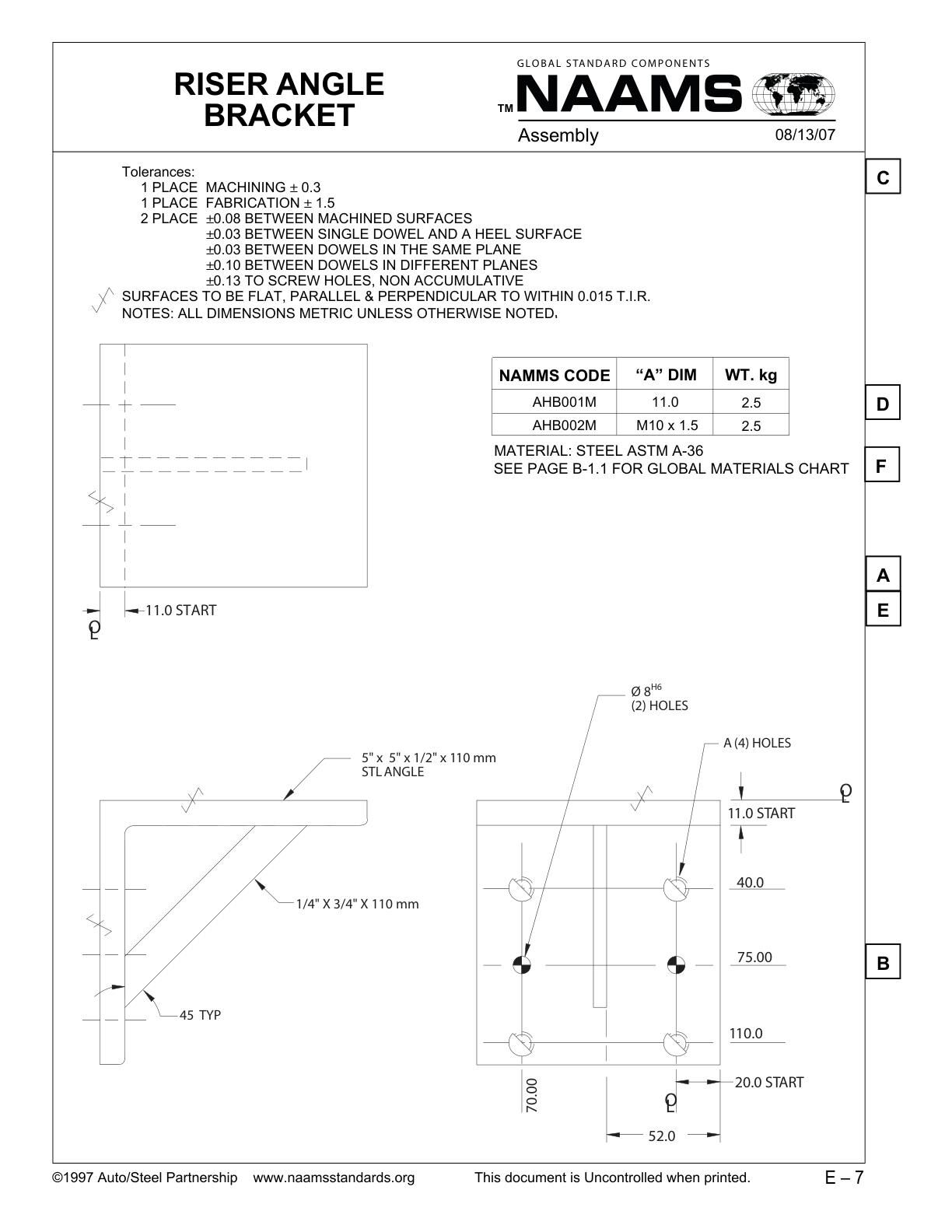

NAAMS AHB001M Riser Angle Bracket

NAAMS AHB001M Riser Angle Bracket


Brand: NAAMS

Riser Angle Bracket

SKU: AHB001M Category:

Additional information

Product Type

Riser Angle Bracket

Series

AHB

Number of Mounting Holes

6

Mounting Hole Diameter

13.5 mm

Threaded Mounting Hole Size

11 mm

Center Hole Diameter

8 H6

Center to End Length

52 mm

Material

Steel

Material Grade

ASTM A-36

Fabrication Process

Welded

Machining Tolerance

+/- 0.3

Fabrication Tolerance

+/- 1.5

Overall Length
Overall Height
Weight

2.5 kg

Dimension (Thickness)

11 mm
