Additional information

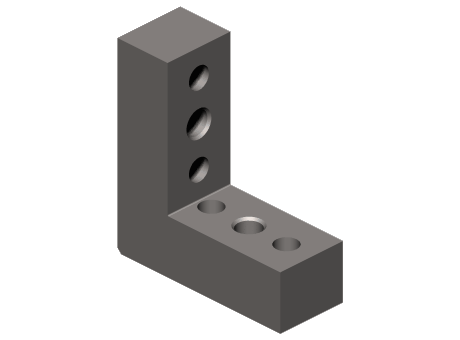

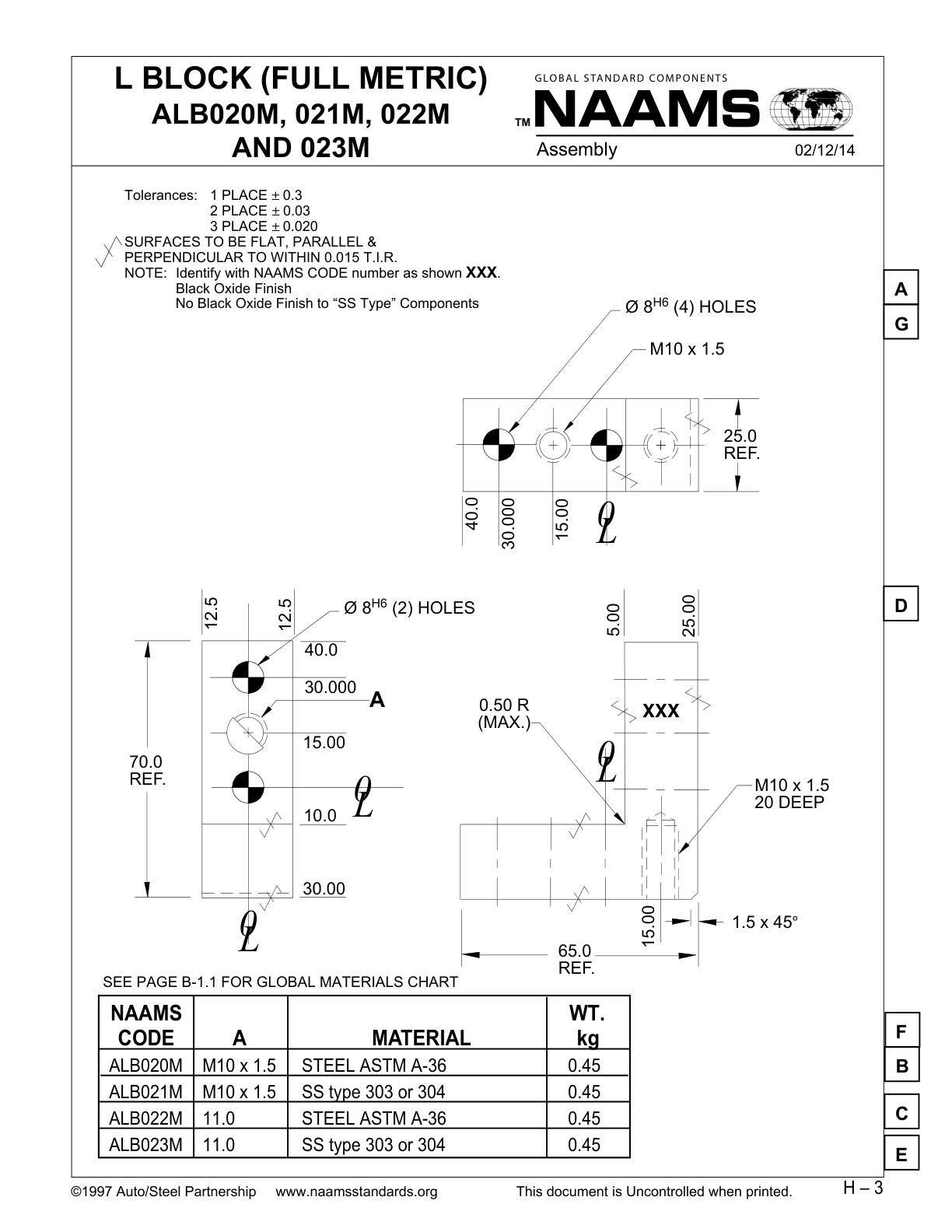

| Product Type | L-Block |
|---|---|
| Series | ALB |
| Number of Mounting Holes | 3 and 4 |
| Mounting Hole Diameter | 8 mm |
| Threaded Mounting Hole Size | 11 mm |
| Radius | 0.50 mm |
| Material | Stainless Steel |
| Material Grade | 303 or 304 |
| Overall Length | 65.0 mm |
| Overall Width | 25.0 mm |
| Overall Height | 70.0 mm |
| Weight | 0.45 kg |
