Additional information

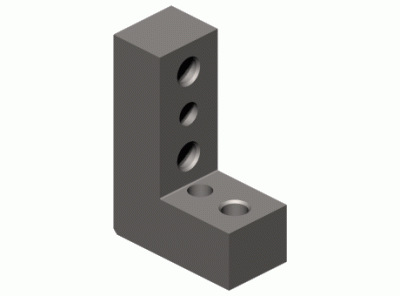

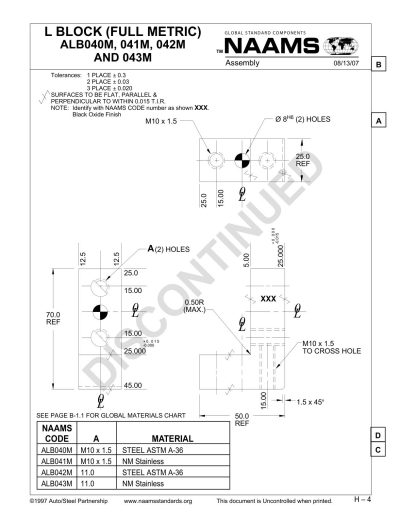

| Product Type | L-Block |
|---|---|
| Series | ALB |
| Number of Mounting Holes | 3 |
| Mounting Hole Diameter | 8 mm |
| Threaded Mounting Hole Size | 11 mm |
| Radius | 0.50 mm |
| Material | Steel |
| Finish | Black Oxide |
| Material Grade | ASTM A-36 |
| Overall Length | 50.0 mm |
| Overall Width | 25.0 mm |
| Overall Height | 70.0 mm |
