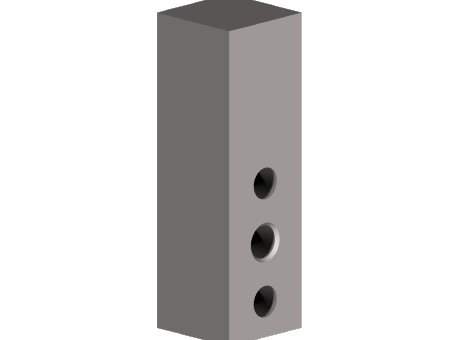

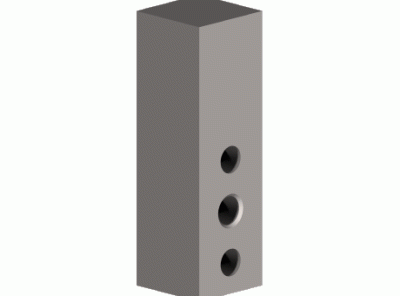

NAAMS ANI080 NC Block Blank

NAAMS ANI080 NC Block Blank


Brand: NAAMS

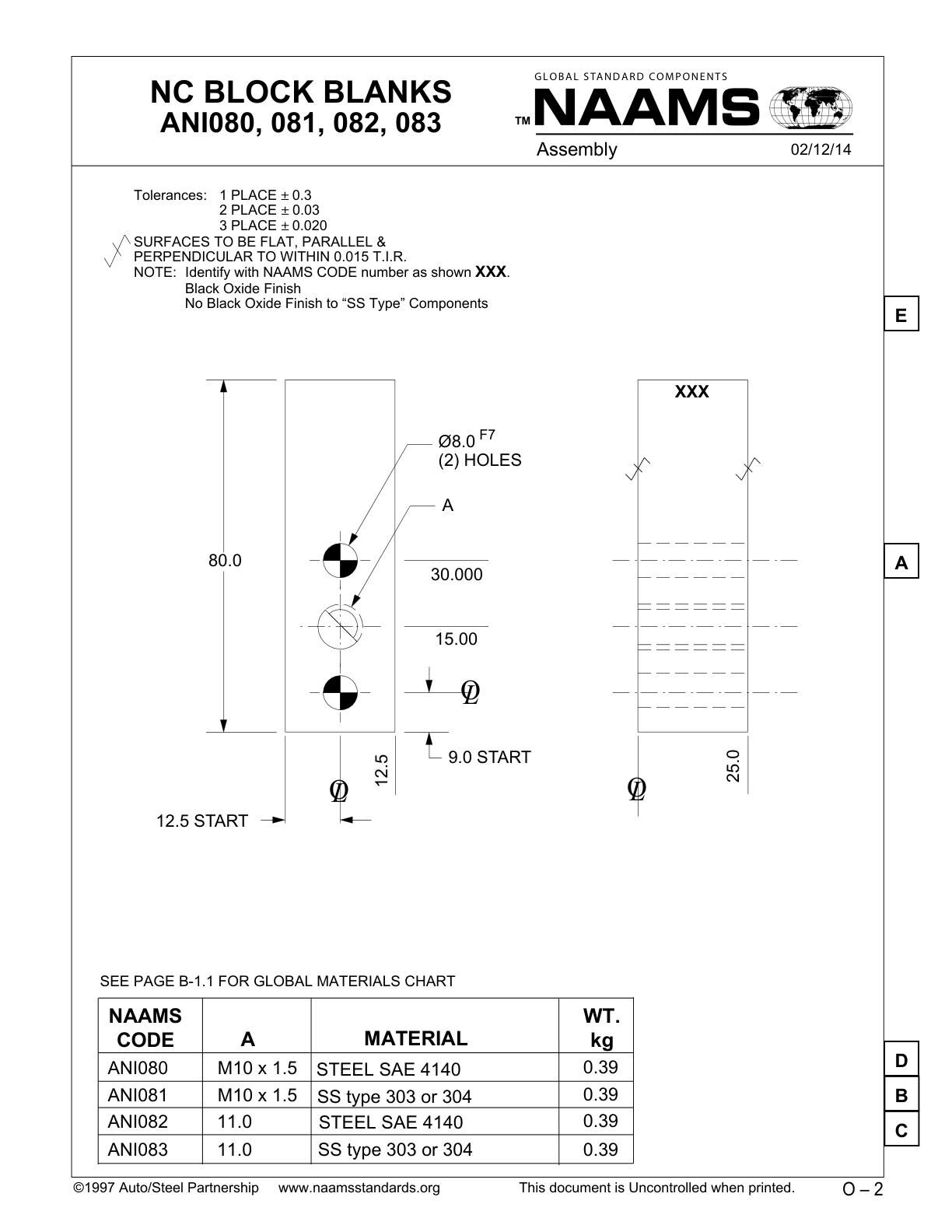

NC BLOCK BLANKS ANI080, 081, 082, 083

SKU: ANI080 Category:

Additional information

Product Type

NC Block Blank

Series

ANI

Number of Mounting Holes

3

Mounting Hole Diameter

8 mm

Threaded Mounting Hole Size

M10 x 1.5

Block Style

I-Shaped

Center to End Width

9.0 mm

Center to End Length

12.5 mm

Material

Steel

Finish

Black Oxide

Material Grade

SAE 4140

Overall Width

25 mm

Overall Height

80 mm

Weight

0.39 kg
