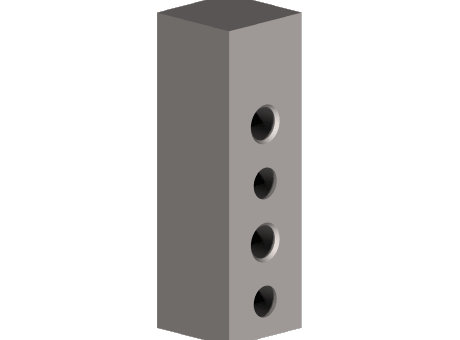

NAAMS ANI129 NC Block Blank

NAAMS ANI129 NC Block Blank


Brand: NAAMS

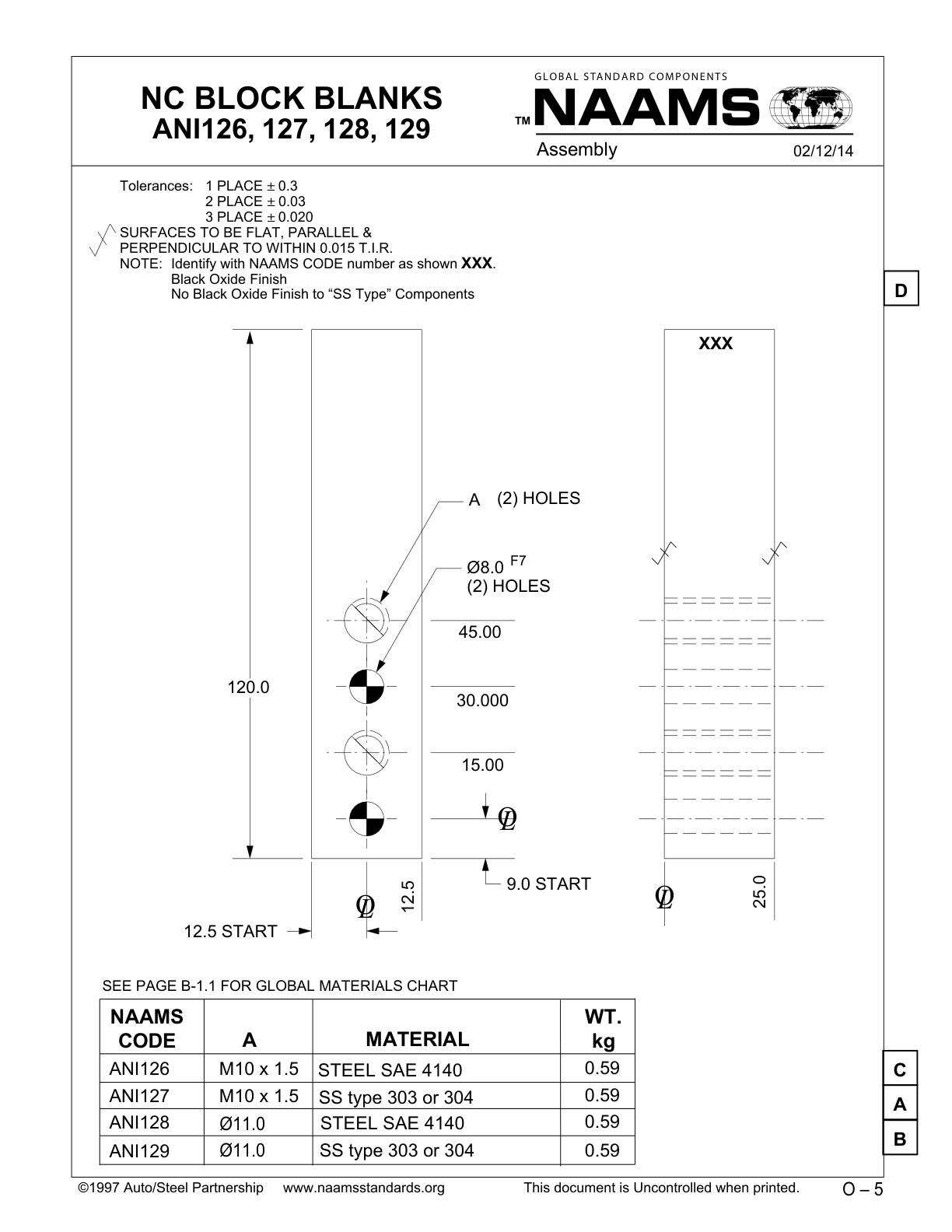

NC BLOCK BLANKS ANI126, 127, 128, 129

SKU: ANI129 Category:

Additional information

Product Type

NC Block Blank

Series

ANI

Number of Mounting Holes

4

Mounting Hole Diameter

8 mm

Threaded Mounting Hole Size

11 mm

Block Style

I-Shaped

Center to End Width

9.0 mm

Center to End Length

12.5 mm

Material

Stainless Steel

Material Grade

303 or 304

Overall Width

25 mm

Overall Height

120 mm

Weight

0.59 kg
