Additional information

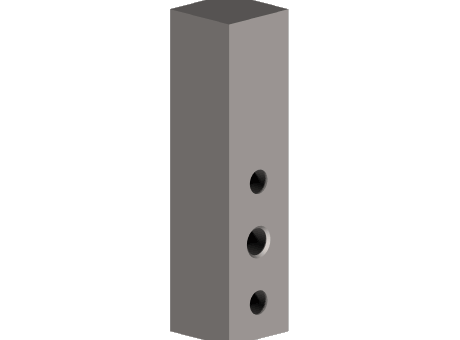

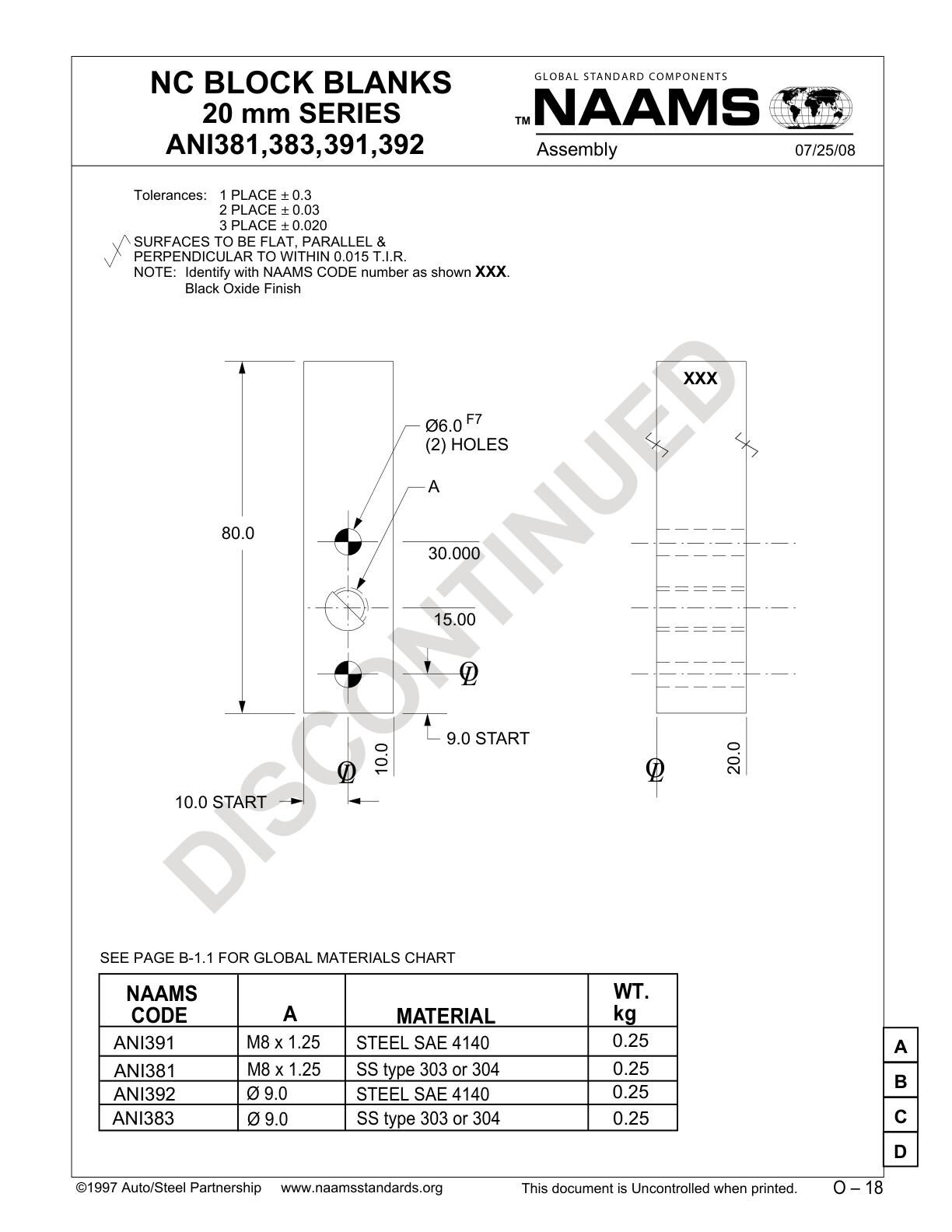

| Product Type | NC Block Blank |
|---|---|
| Series | ANI |
| Number of Mounting Holes | 3 |
| Mounting Hole Diameter | 6 mm |
| Threaded Mounting Hole Size | M8 x 1.25 |
| Block Style | I-Shaped |
| Center to End Width | 9.0 mm |
| Center to End Length | 10 mm |
| Material | Steel |
| Finish | Black Oxide |
| Material Grade | SAE 4140 |
| Overall Width | 20 mm |
| Overall Height | 80 mm |
| Weight | 0.25 kg |
