Additional information

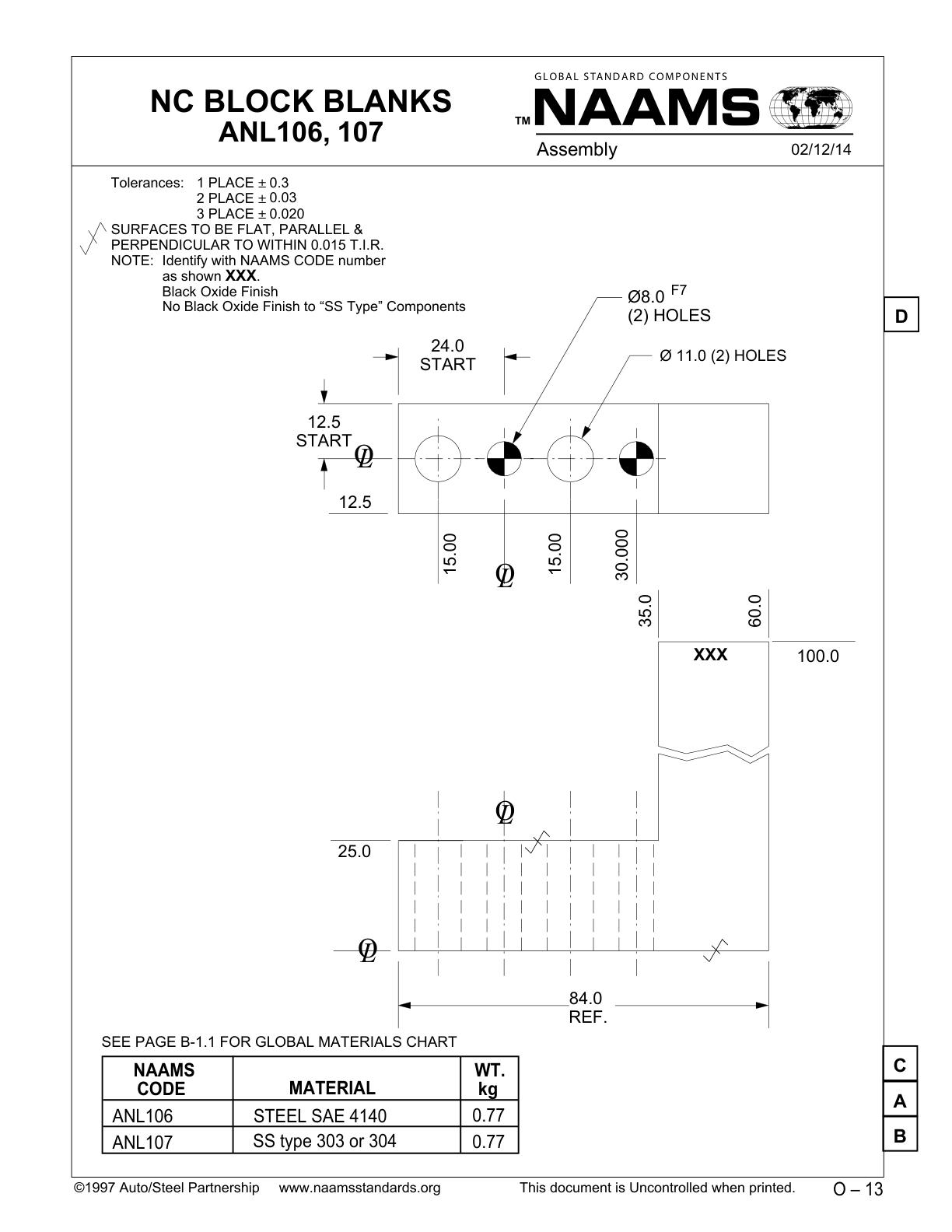

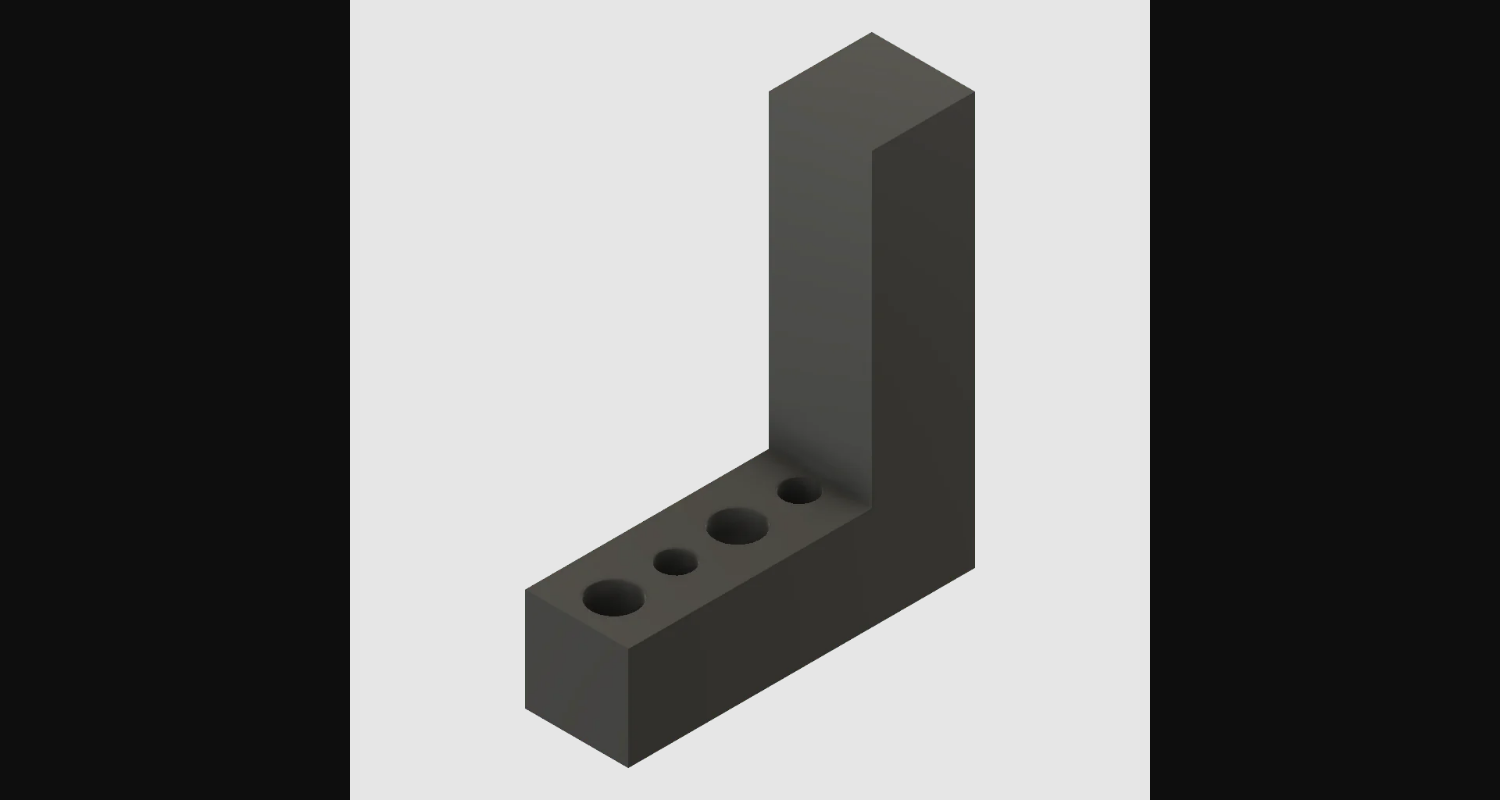

| Product Type | NC Block Blank |
|---|---|
| Series | ANL |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter | 8 mm |
| Threaded Mounting Hole Size | 11.0 (2) HOLES |
| Block Style | L-Shaped |
| Center to End Width | 24.0 mm |
| Center to End Length | 12.5 mm |
| Material | Stainless Steel |
| Material Grade | 303 or 304 |
| Overall Width | 25 mm |
| Overall Height | 84.0 mm |
| Weight | 0.77 kg |
